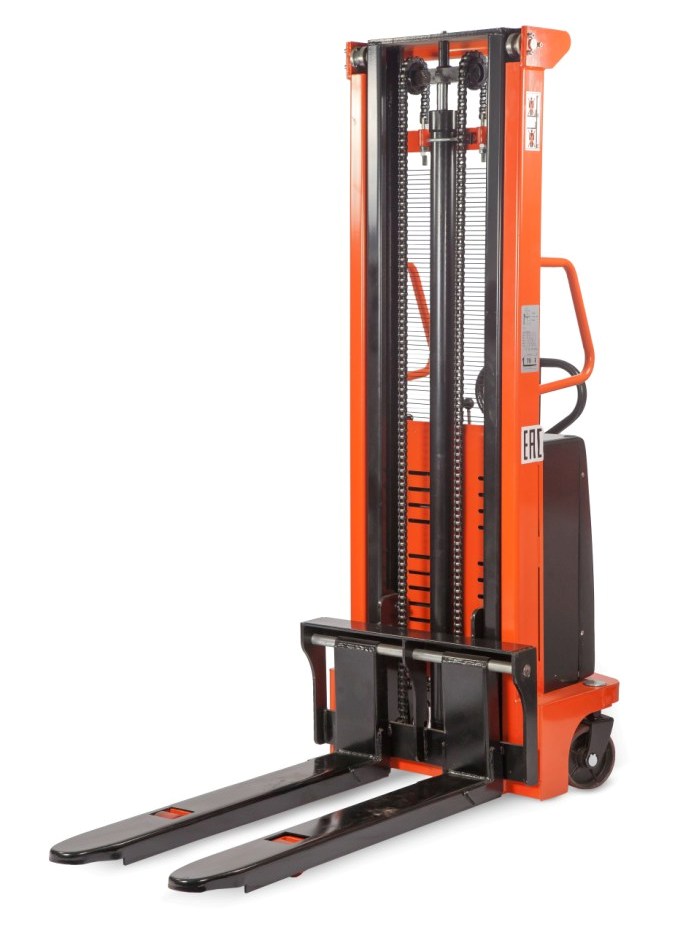

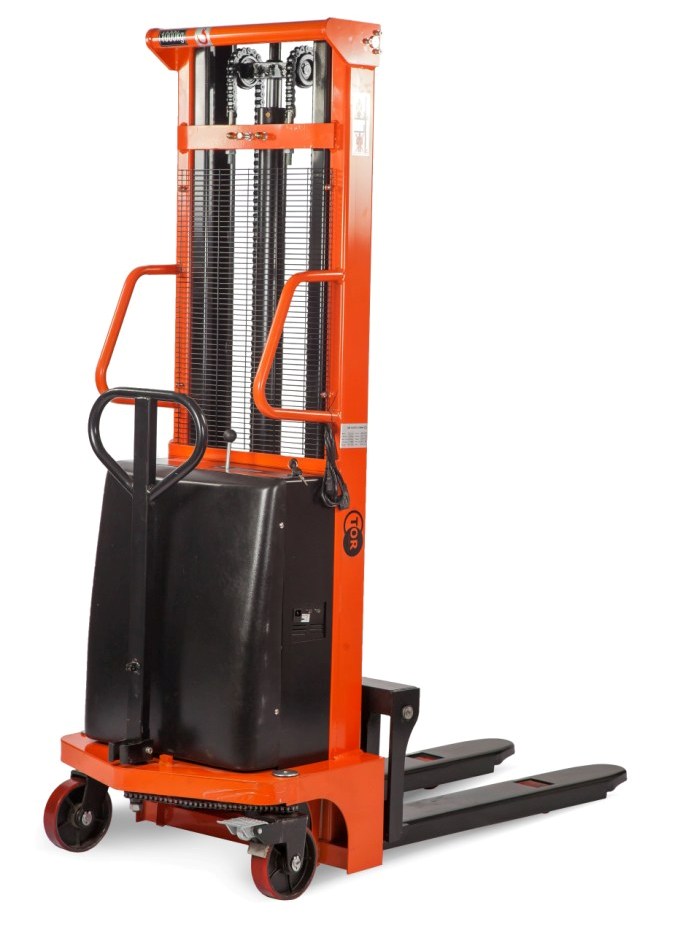

CTD electric lifting stacker
Modern hydraulic stacker with load lifting function by means of of an electric compressor. Lifting and lowering is controlled by a lever on the body. Horizontal movement is performed in manual mode.
Equipped with a powerful battery, which allows, if necessary, to perform fast charging during breaks between loading operations.
Recommended for use in heated warehouses with an average intensity of work.
Depending on the version (lifting height), it is equipped with frames with one or two sections.
Wheels and rollers are made of wear-resistant material and have a long service life.
CTD electric stacker meets the quality requirements of the European Directive 2006/42/EC on Machinery Factsheet for Machinery and is CE certified.
Specifications:
• electric drive for lifting and lowering;
• up to 8 hours of operation;
• traction battery, 1600 mm: 12v-100Ah, more than 1600 mm: 12v-120Ah;
• controls are located on the body;
• built-in charger.
CTD
Characteristics
Rated load, t |
Pick-up height, mm |
Lifting height, mm |
Fork length, mm |
Fork width, mm |
Weight, kg |
Turning radius, mm |
Aisle width, mm |
Battery |
1,0 | 90 |
1600/2000/2500/ 3000/3300 |
1000 | 550 |
280/305/325/ 350/410 |
1330 | 800 | vide supra |
1,5 | 90 |
1600/2000/2500/ 3000/3300 |
1000 | 550 |
305/350/365/ 415/420 |
1330 | 800 | vide supra |
2,0 | 90 | 1600/2000 | 1000 | 550 | 310/415 | 1330 | 800 | vide supra |
