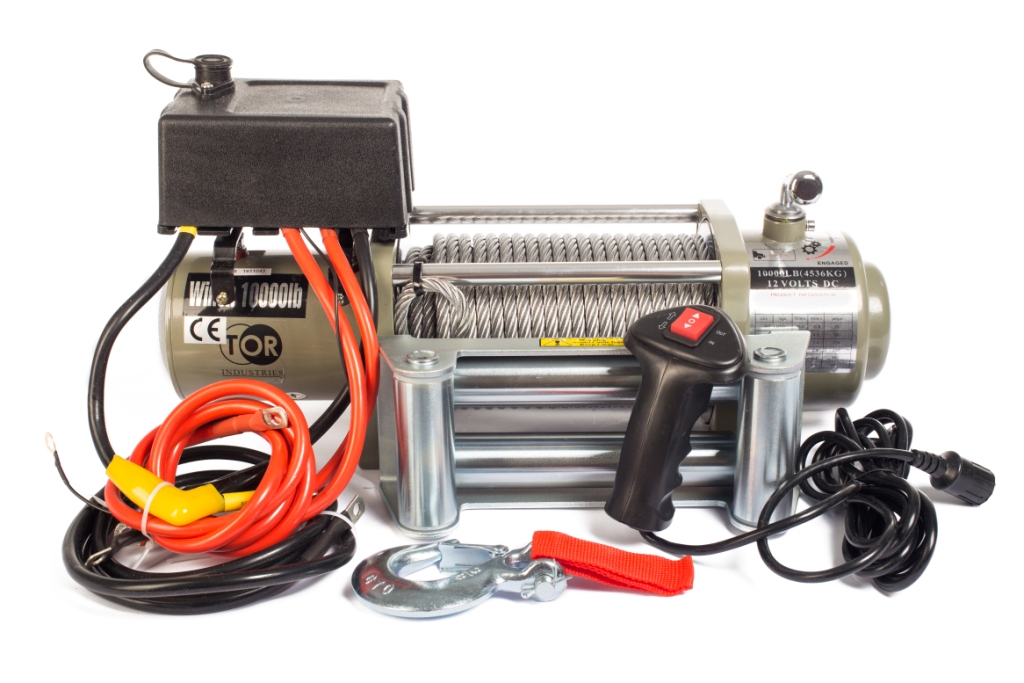

TOR Industries manufactures various modifications of electric truck-mounted winches. These winches are mounted on a truck to significantly enhance its application capabilities. The winches differ in tractive power developed, and the nominal operating voltage (12 V and 24 V). Truck-mounted winches manufactured by TOR Industries comply with quality requirements of Directive 2006/42/EC on Machinery Factsheet for Machinery and have CE certificate.
|
Model |
Rated load, kg |
Drum capacity, m |
Rope diameter, mm |
Rope completing |
Power, kw |
Operating voltage, V |
Weight, kg |
| P 3000 | 1133 | 15 | 5,2 |
Yes |
1,0 | 12 | 24 |
| P 3500 | 1588 | 15 | 5,2 |
Yes |
0,8 | 12 | 25 |
| P 6000 | 2948 | 20 | 7,2 |
Yes |
1,3 | 12 | 26 |
| P 8000 | 3629 | 28 | 8,1 |
Yes |
4,1 | 12 | 35 |
| S 10000 | 4536 | 28 | 8,3 |
Yes |
4,0 | 12 | 40 |
| S 10000 | 4536 | 28 | 8,3 |
Yes |
2,7 | 24 | 40 |
| S 12000 | 5443 | 28 | 9,1 |
Yes |
4,8 | 12 | 40 |
| SEC 13000 | 5897 | 26 | 9,5 |
Yes |
4,0 | 12 | 40 |
| SEC 15000 | 6804 | 28 | 11 |
Yes |
4,2 | 12 | 55 |
| SEC 16800 | 7620 | 28 | 11,5 |
Yes |
4,2 | 12 | 56 |
| S 20000 | 9072 | 30 | 13,5 |
Yes |
5,5 | 12 | 78 |
