MS

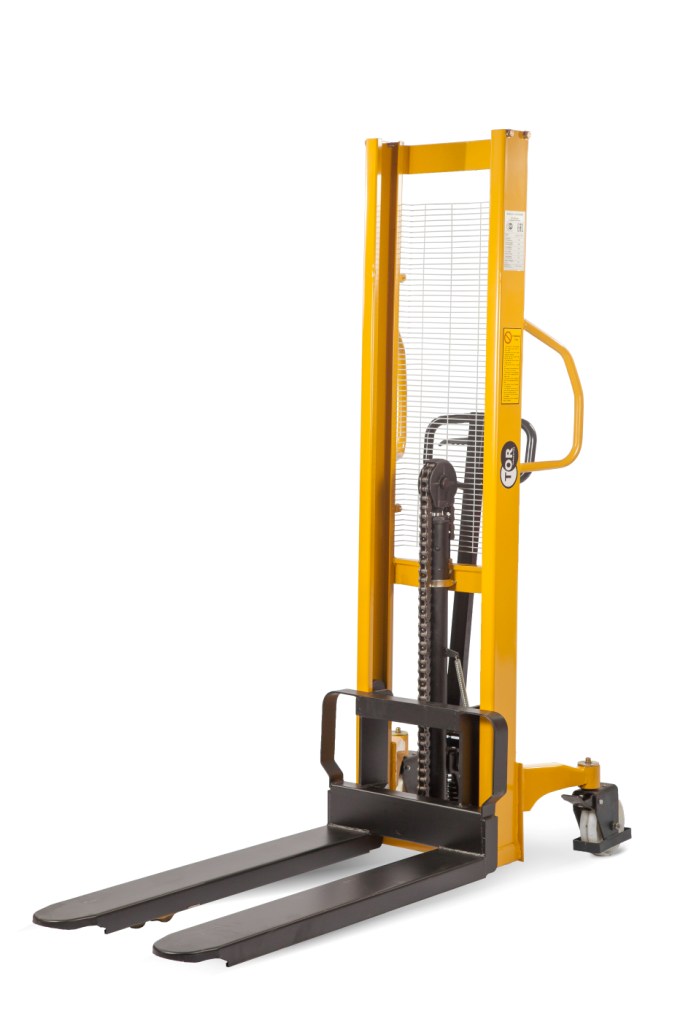

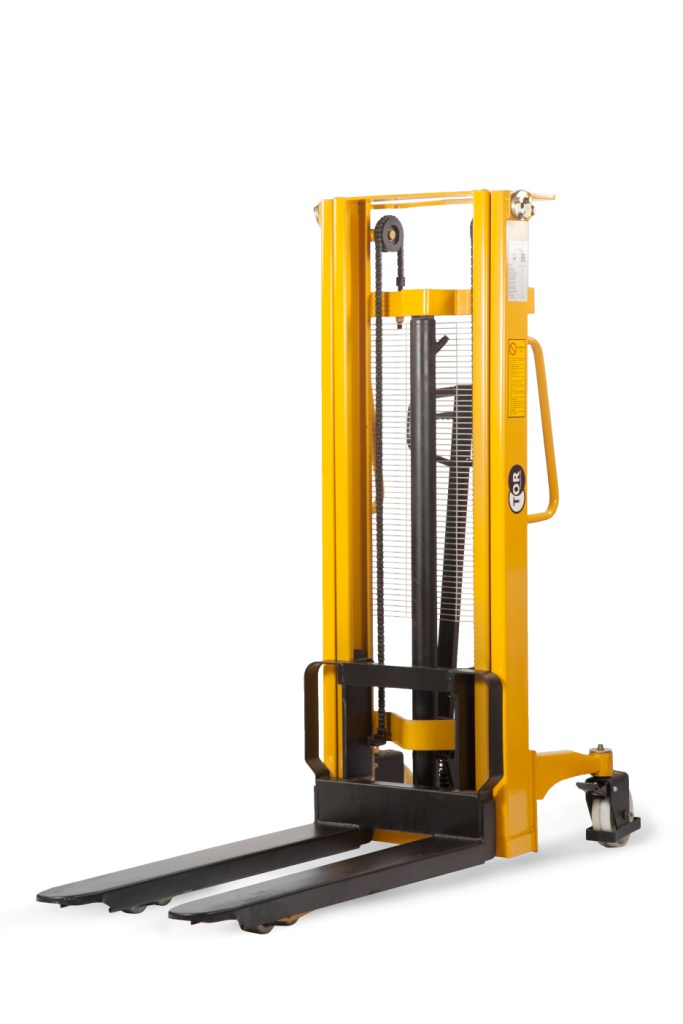

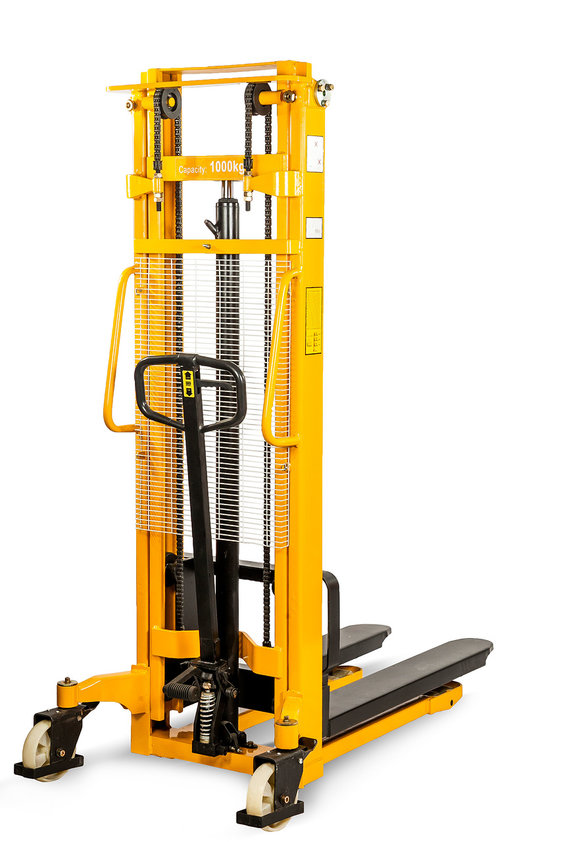

Classical modern hydraulic stacker with manual drive. Simple and reliable. It is recommended for application at warehouses with low intensity of works. Lifting is carried out by means of the hand lever or foot pedal, lowering of load by means of pressing of the plate for switching of modes at the control handle. Horizontal movement of stacker is carried out in manual mode. This model of manual hydraulic stacker is the most universal in its class. Depending on the height of lifting it can be equipped with masts with one or two sections.

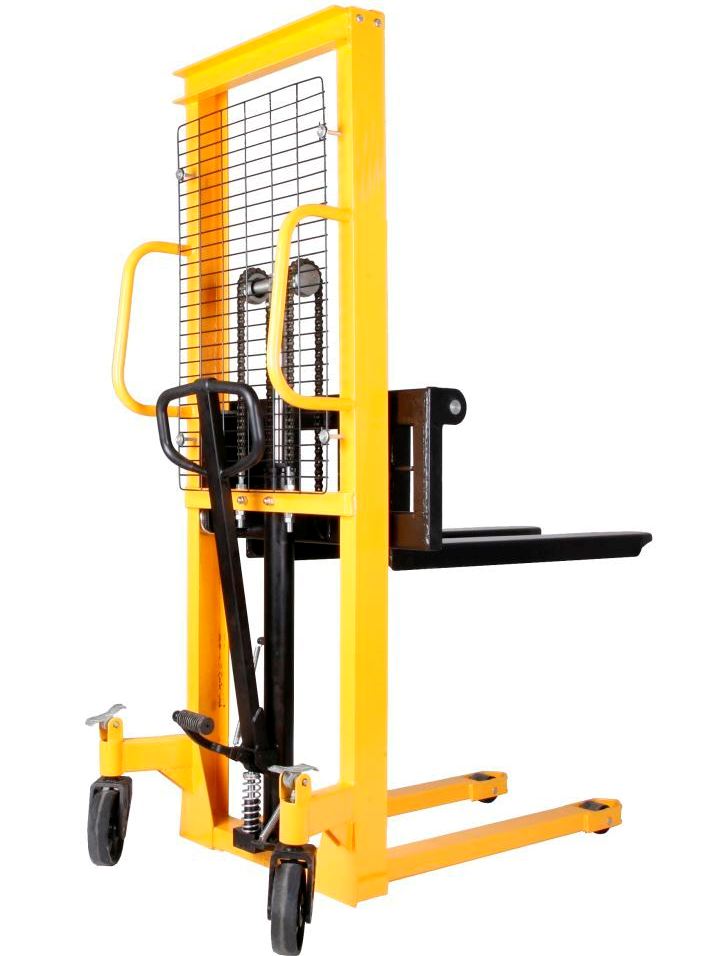

It is manufactured in two modifications: with opening forks and fixed width of forks.
MODIFICATIONS: opening forks, fixed forks.
MS
Characteristics
Rated load, t |
Pick-up height, mm |
Lifting height, mm |
Fork length, mm |
Fork width, mm |
Weight, kg |
Turning radius, mm |
Aisle width, mm |
1,0 | 90 | 1600/2000/2500/3000 | 1150 | 550 | 270/290/358/378 | 1350 | 710 |
1,5 | 90 | 1600/2500/3000 | 1150 | 550 | 282/367/387 | 1350 | 710 |
2,0 | 90 | 1600 | 1150 | 550 | 410 | 1350 | 710 |
