RHP

RHP

Source of pride of the company. It is equipped with the dismountable cast hydraulic system of the latest design. The most technological, reliable and durable model, combining high efficiency, convenience in operation and simplicity in maintenance. It is recommended for objects with high intensity of works.

 Characteristics:

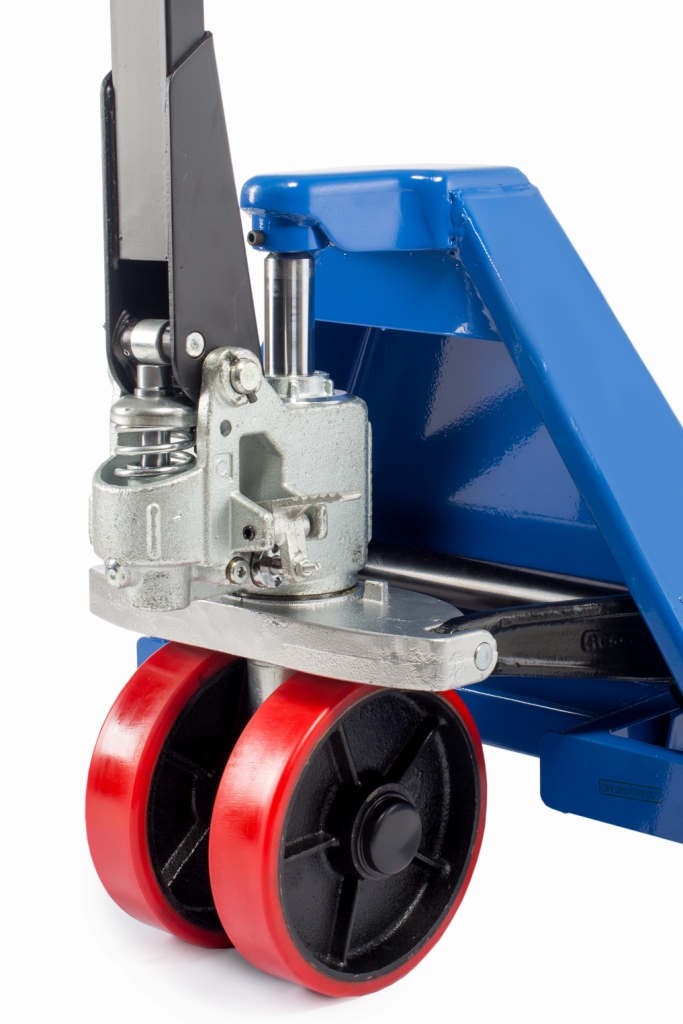

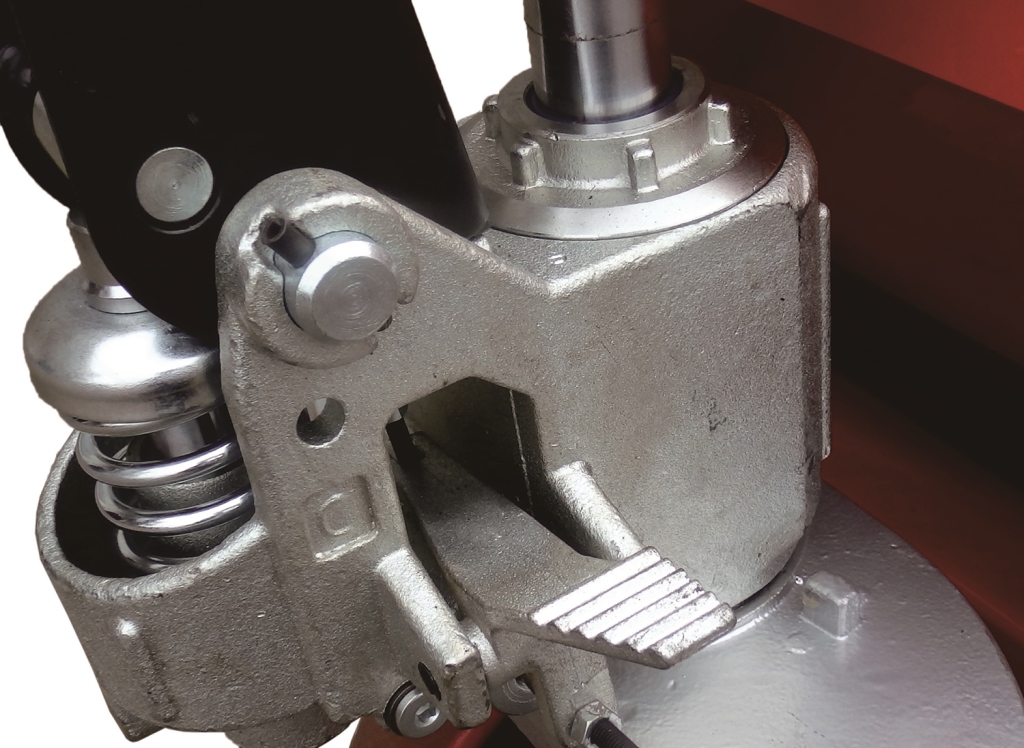

  • Modernized cast dismountable hydraulic system (new design by TOR) - high reliability and convenience in maintenance;
  • Additional strengthening of forks - work with heavy loads, durability;

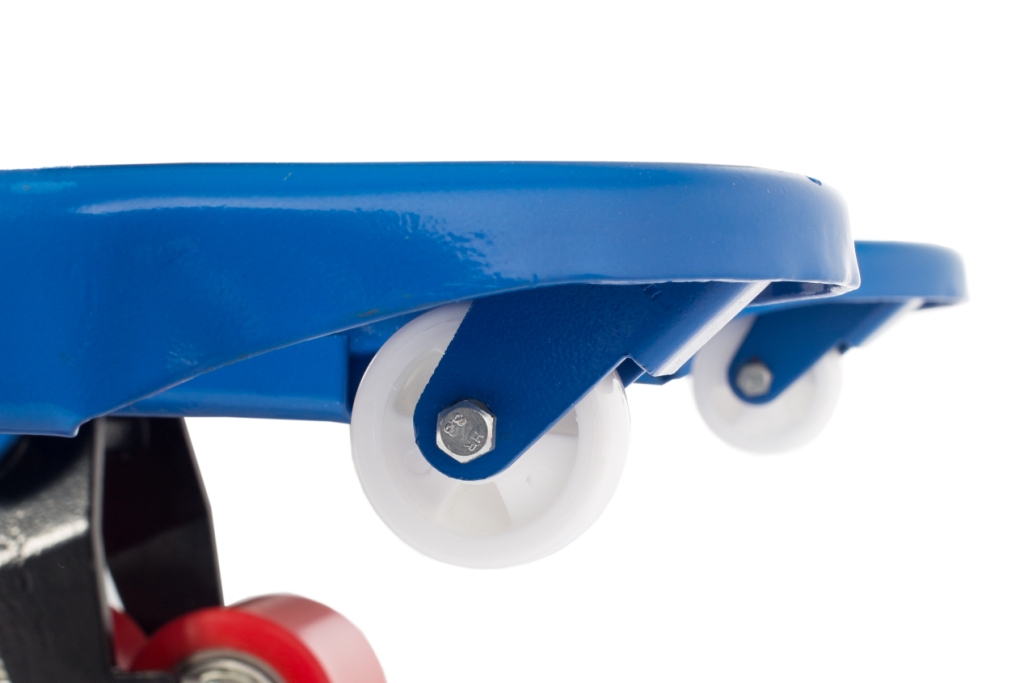

  • Auxiliary rollers - facilitaitng coming upwards onto the ramp;

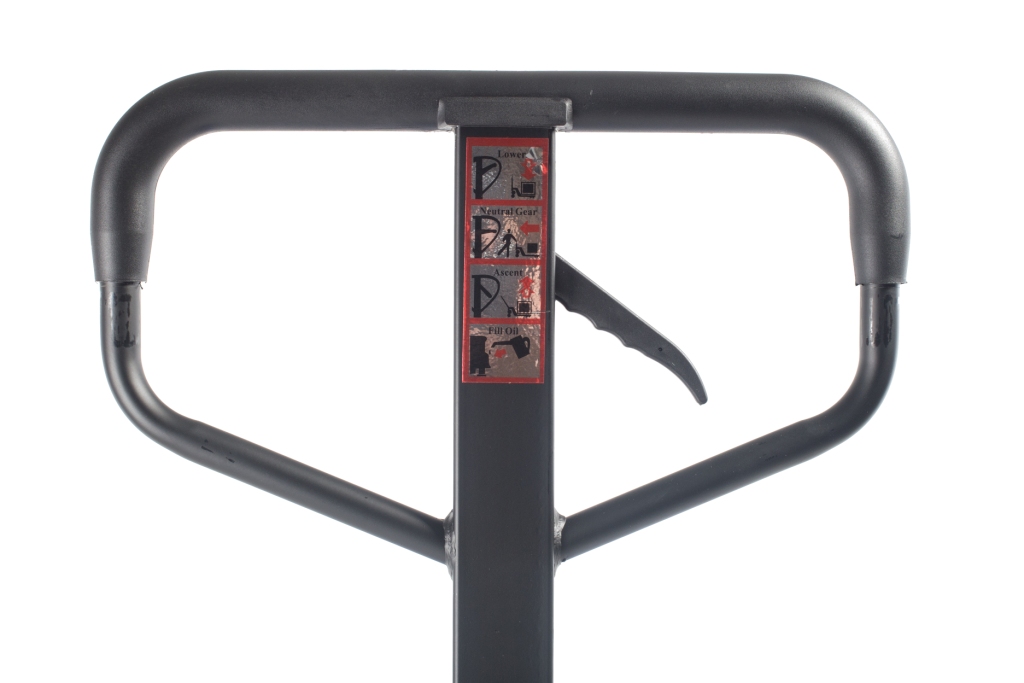

  • Ergonomic handle with rubber lining - comfort in operation at low temperature
  • Turning wheel, mm – 200x50;
  • Rollers, mm – 80x70.
LOADING CAPACITY OPTIONS: 2.5, 3,0, 5,0t.
MODIFICATIONS: Various lengths of forks, narrow forks, low profile.

Characteristics

Version Rated load, t
 Pick-up height, mm
 Lifting height, mm
 Fork length, mm
 Fork width, mm
Weight, kg 		Turning radius, mm
Standart 2,5 85 195 1150 550 76 1395
Increased rated load 3,0 85 195 1150 550 78 1395
Increased rated load
 5,0 85 195 1150 550 78 1395
Low profile 2,5 65 175 1150 550 76 1395
Shortened forks
 2,5 85 195 800 550 70 1200
Elongated forks
 2,5 85 195 1500 550 126 1745
Elongated forks
 2,5 85 195 1800 550 145 1945
Elongated forks
 2,5 85 195 2000 550 153 2245
Narrowed forks
 2,5 85 195 1150 450 76 1395
