HW 1500

HW 1500

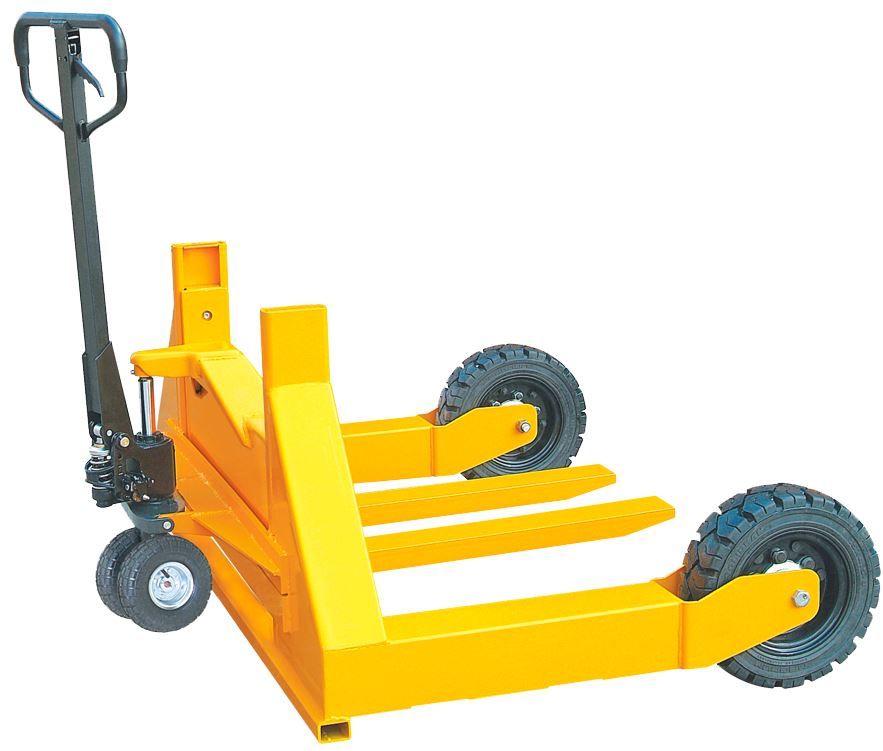

Hydraulic carriage, special design and wheels with big diameter of which allow it to work at uneven surfaces, including the solid soil. Lifting/lowering of load is carried out by pendular movements of the controlling handle. The distance between forks can be regulated.

  Characteristics:
  • Adjustment of distance between forks;
  • Wheels with big diameter;
  • There are no rubber lining at the handle;
  • Turning wheel, mm – 110x50;
  • Rollers, mm – 80x70.

Characteristics

Rated load, t
 Pick-up height, mm
 Lifting height, mm
 Fork length, mm
 Fork width, mm
 Weight, kg
 Turning radius, mm
1,5 70 240 800 226-740 192 1190
