PWS

PWS

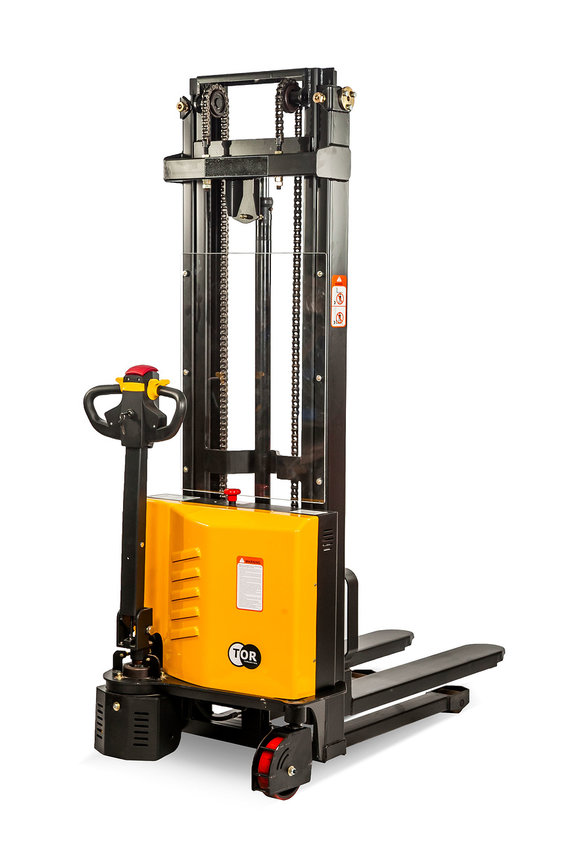

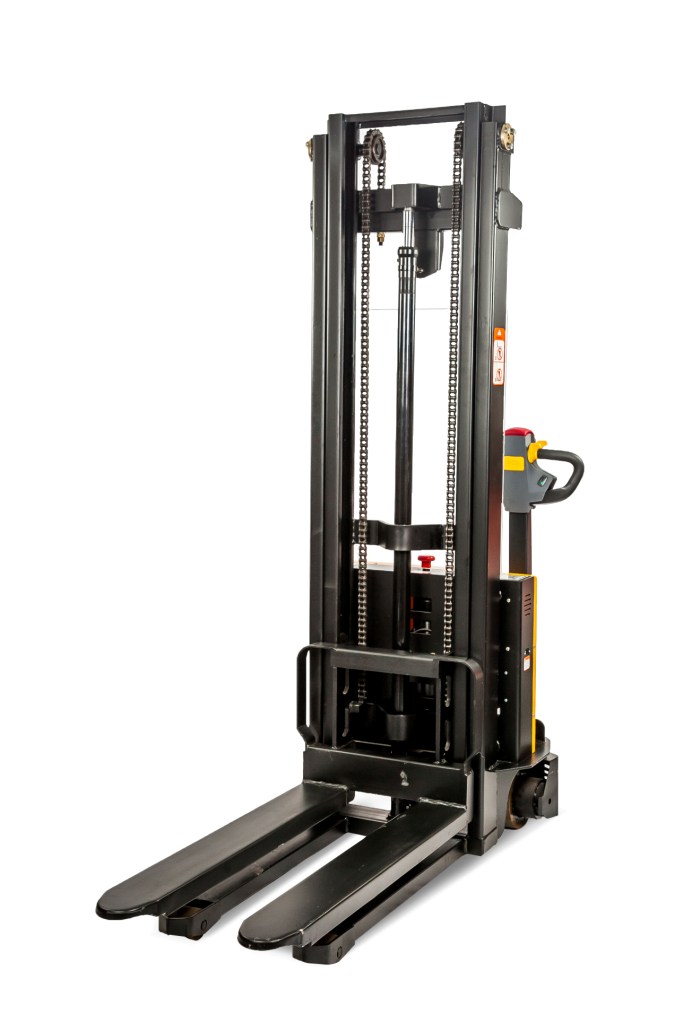

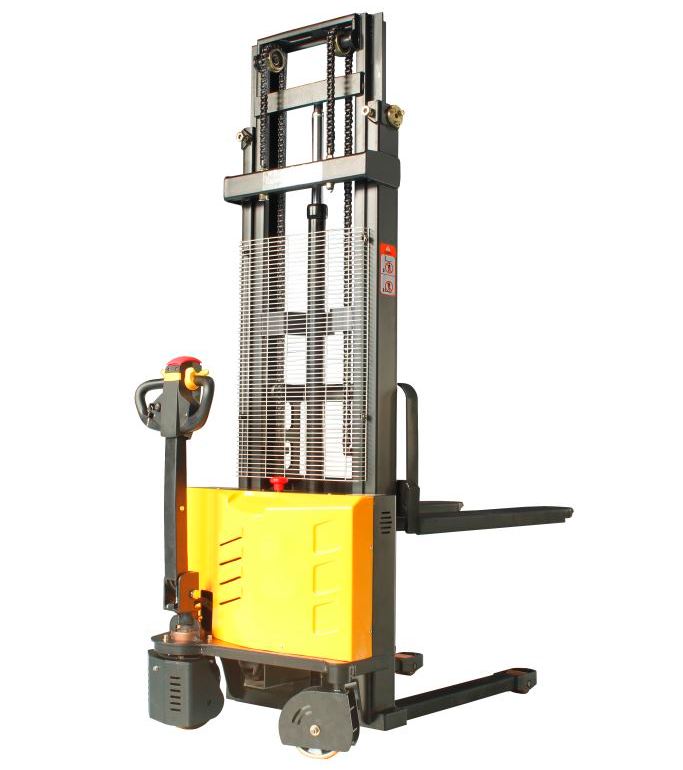

Electric self-propelled stacker of economy class. It is characterised by not high price. Electric drive for movement is installed at the back rotary wheel. Traction battery for 8 hours of operations. Control by means of buttons and levers at the control handle. Depending on modification (height of lifting) it can be equipped with masts with one or two sections.

  Characteristics:
  • self-propelled;
  • self-lifting;
  • traction battery, 12V-75Ahx2;
  • 8 hours of operations;

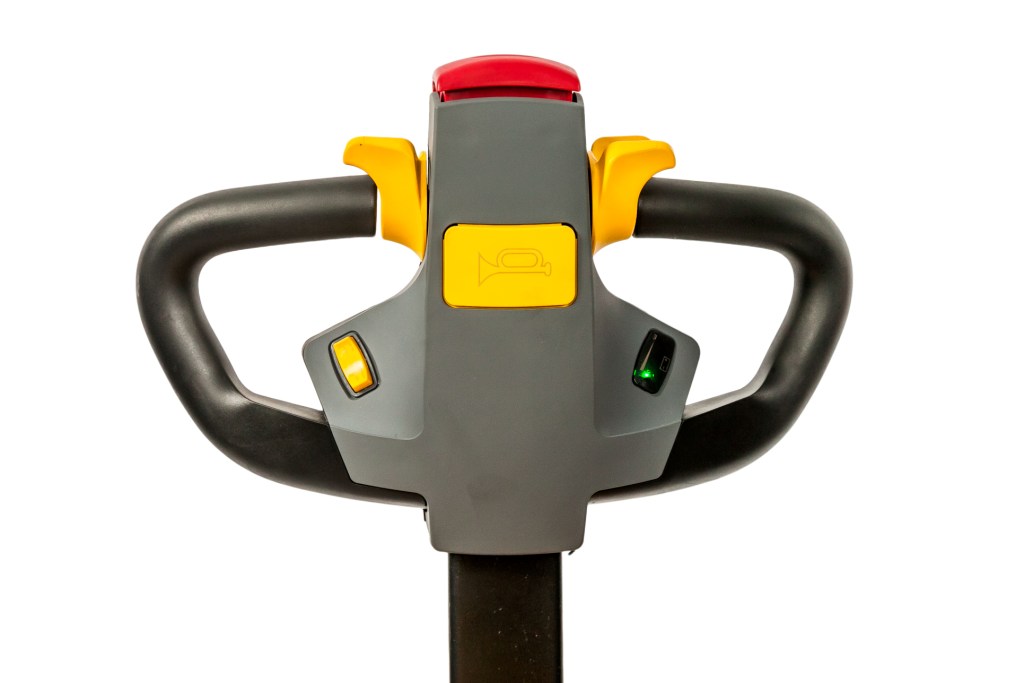

  • control at the handle;
  • built-in charger;

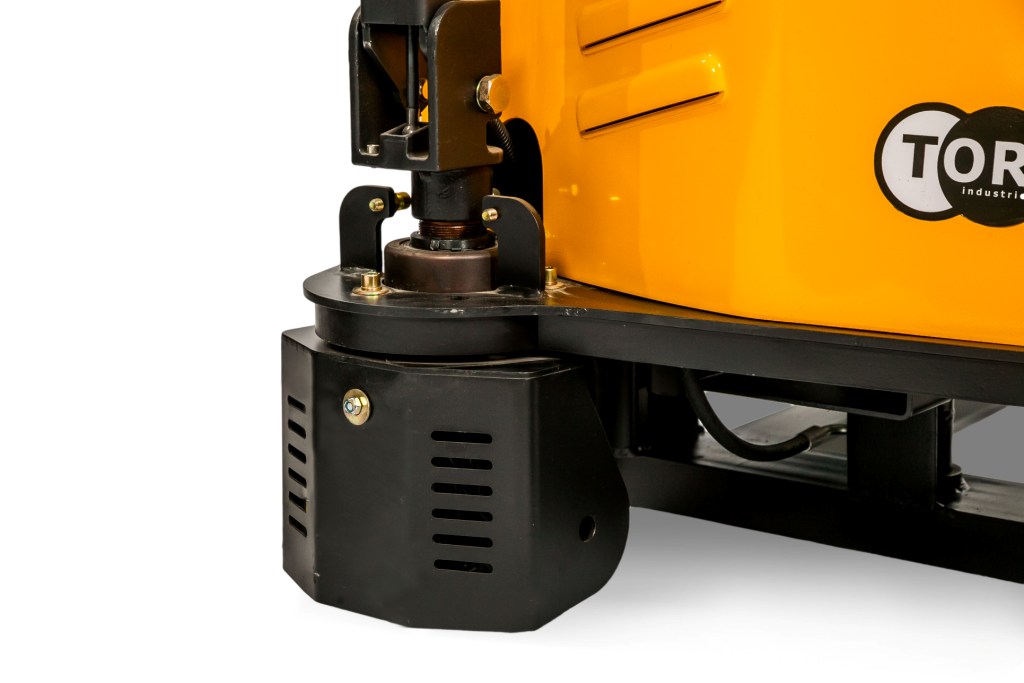

  • drive at the rotary wheel.

Characteristics

Rated load, t
 Pick-up height, mm
 Lifting height, mm
 Fork length, mm
 Fork width, mm   Weight, kg
 Turning radius, mm
 Aisle width, mm          Battery
1 85 1600/2500/3000/
3300/3500 		1150 540 355/405/425/
455/480 		1390 800 24v-75Ah х 2pcs.
1,5  85 1600/2500/3000/
3300/3500 		1150 540 375/425/445/
475/480 		1390 800 24v-75Ah х 2pcs.
