ES

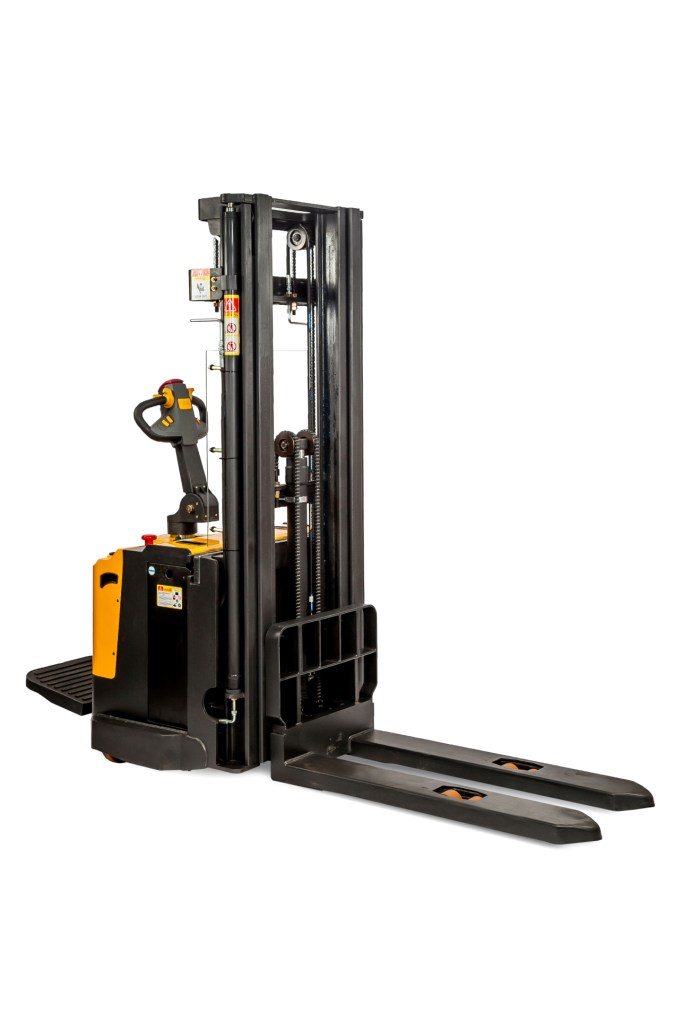

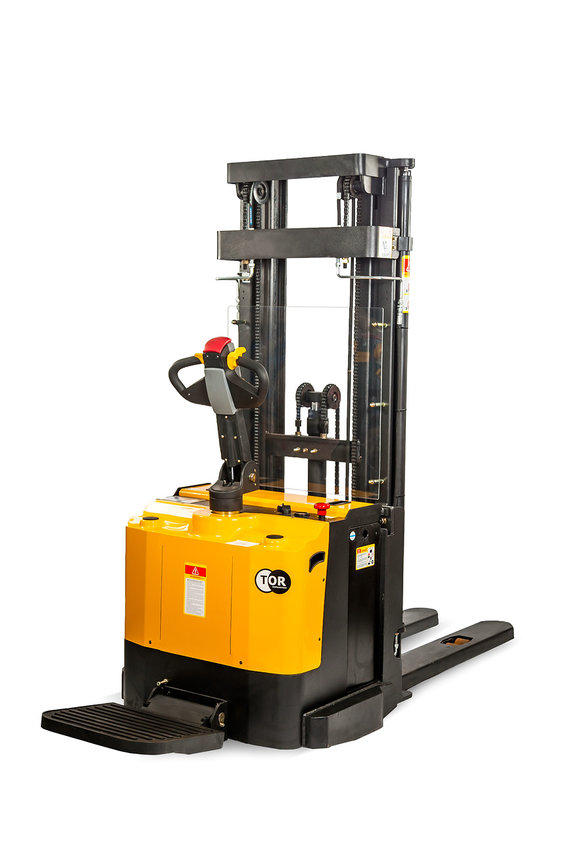

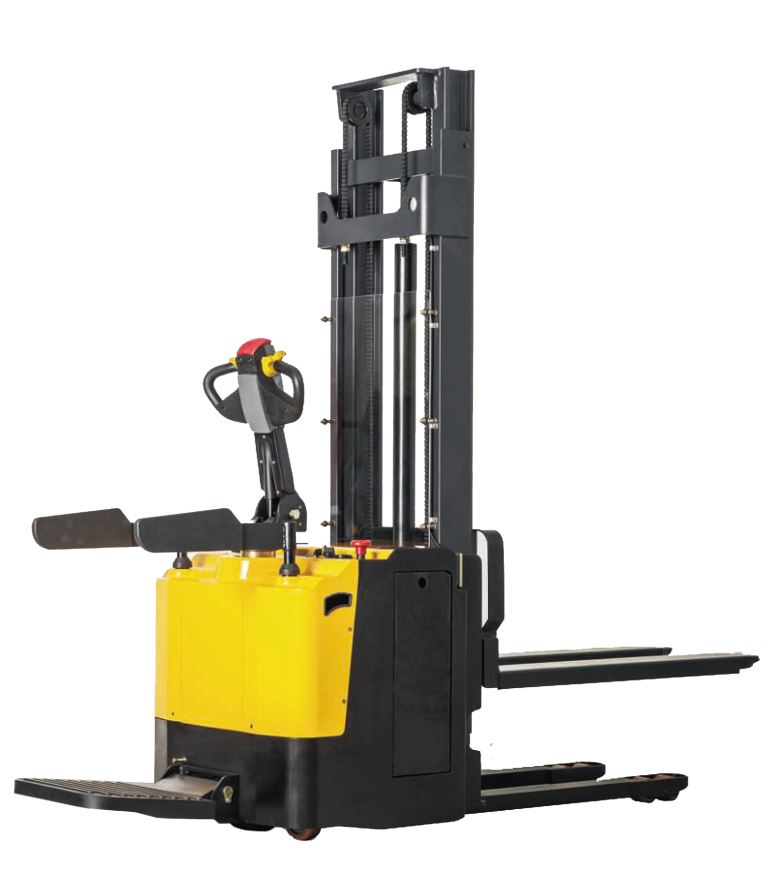

Modern, technological, completely electrified stacker "best in class". It is equipped with very powerful traction battery ensuring effective functioning throughout the whole working day. The basic set includes the platform for operator, that allows to use the stacker effectively at warehouses with big squares. It does not demand from the operator application of physical efforts and it facilitates high efficiency of works. Depending on modification (height of lifting) it can be equipped with masts with one, two or three sections. In addition to this it can be equipped with safety side handrails.

 Characteristics:
  • self-propelled;
  • self-lifting;
  • acid traction battery, 24V-210Ah;
  • 8 hours of operations;

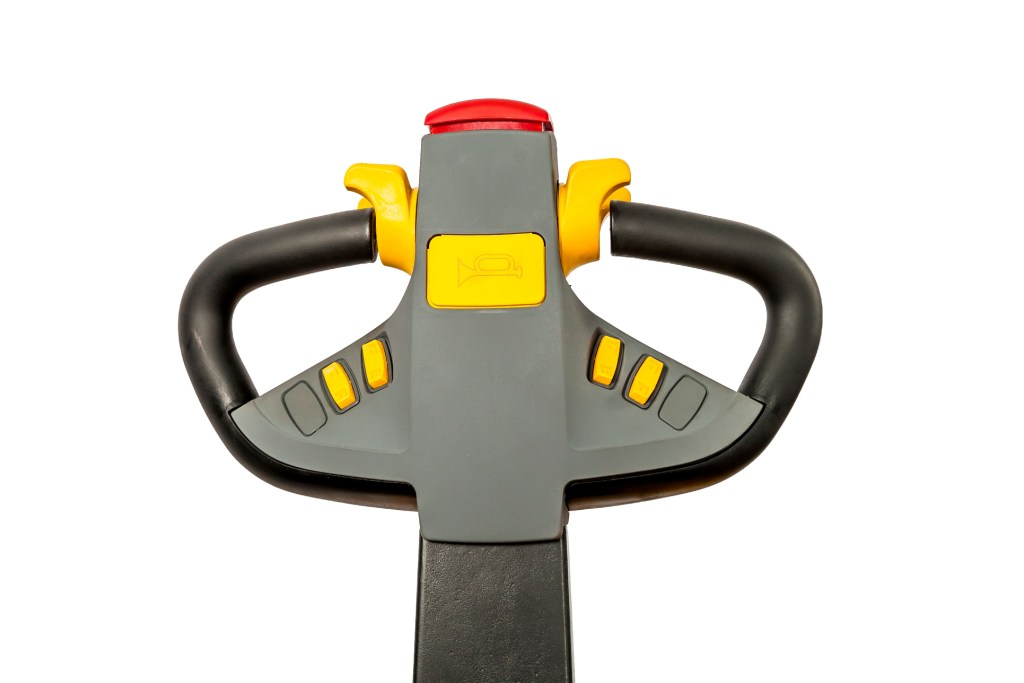

  • control at the handle;
  • external charger (in the set);
  • additional driving wheel;

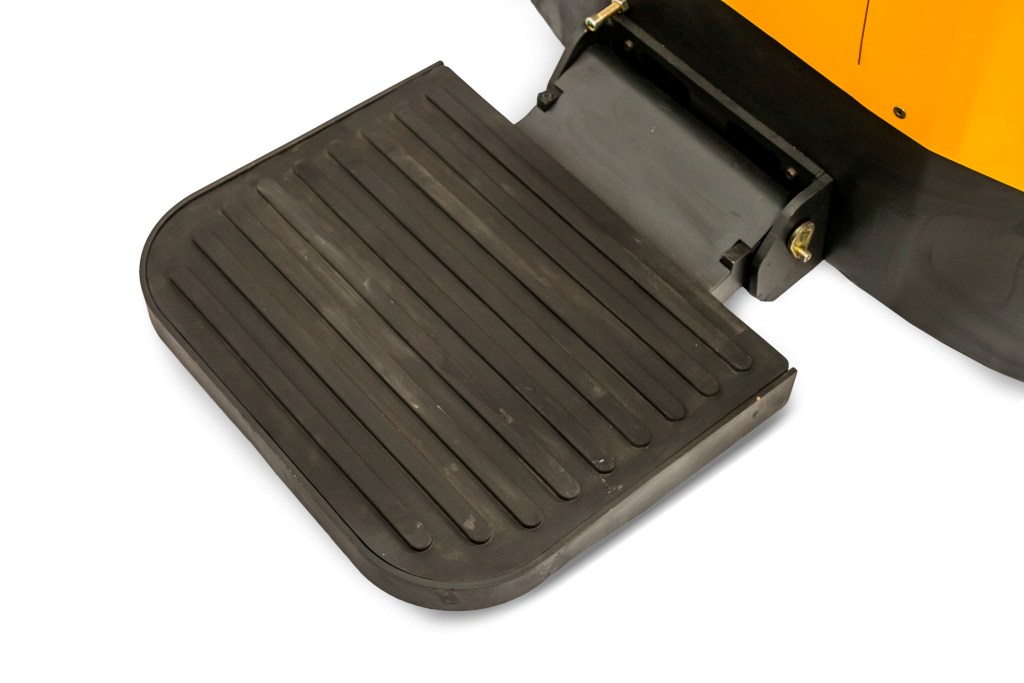

  • platform for operator;
  • free stroke of forks (ES15T).

Characteristics

ES15D - two-section mast
Rated load, t
Pick-up height, mm
Lifting height, mm
Fork length, mm
Fork width, mm  Weight, kg
Turning radius, mm
Aisle width, mm
     Battery
1,5  90 1600/2500/3000
3500/4000
1150 540 1060/1090/1110
1120/1150
1637 800 24V - 280Ah

ES15T - three-section mast
Rated load, t
Pick-up height, mm
Lifting height, mm
Fork length, mm
Fork width, mm
Weight, kg
Turning radius, mm
Aisle width, mm
     Battery
1,5  90 4000/4300/4500 4800/5000/5300 1150 540 1220/1255/1290 1350/1385/1405 1650 800-960 24V - 280Ah
