CDDR

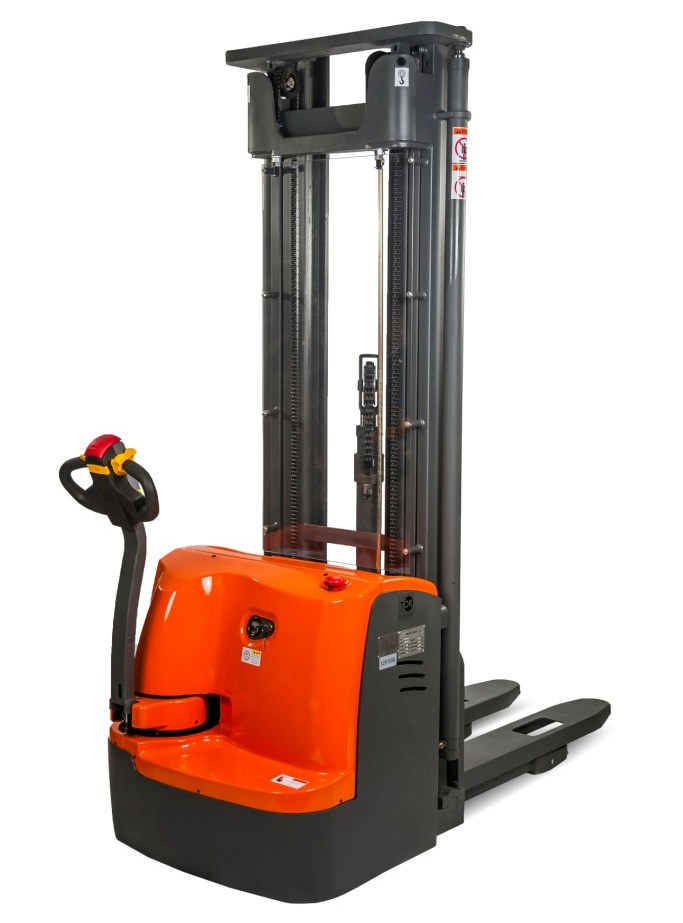

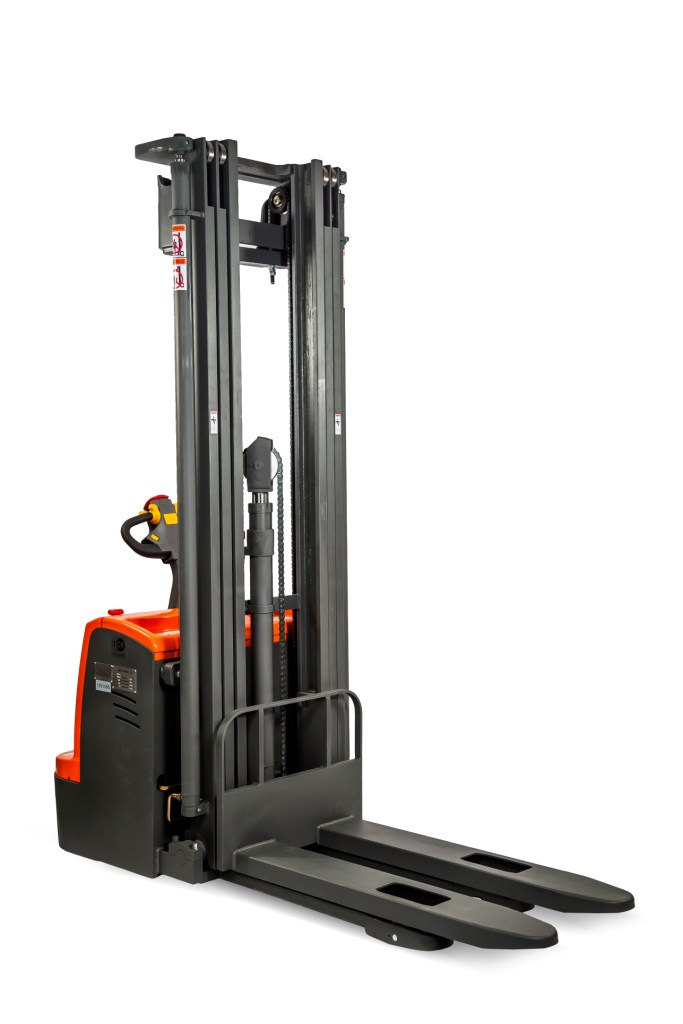

Modern, technological, completely electrified TOP class stacker. It is equipped with very powerful traction battery ensuring effective functioning throughout the whole working day. It is manufactured in two modifications: with the platform for operator and without platform. It does not demand from the operator application of physical efforts for lifting works and transportation of loads. Depending on modification (height of lifitng) it can be equipped with masts with one, two or three sections.

  Characteristics:
  • self-propelled;
  • self-lifting;
  • acid traction battery:
  • CDDR15 II 24V-240Ah,
  • CDDR15 III 24V-200Ah;
  • 8 hours of operations;

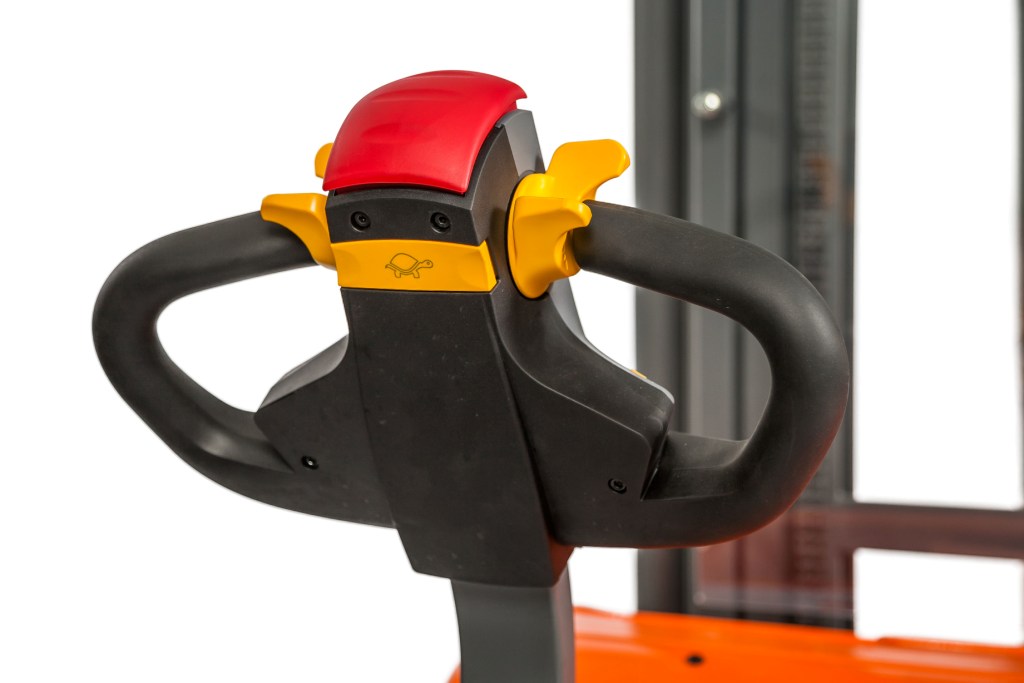

  • control at the handle;
  • external charger (in the set);
  • additional driving wheel;
  •  free stroke of forks (CDDR15 II).

Characteristics

CDDR15-II - three-section mast
Rated load, t
Pick-up height, mm
Lifting height, mm
Fork length, mm
Fork width, mm  Weight, kg
Turning radius, mm
Aisle width, mm
      Battery
1,5  90 2500/3000/3300/3500   4500/5000/5600 1150 570 1030/1150/1170/1190 1365/1400/1440 1525 820 24v-240Ah

CDDR15-III -  two-section mast
Rated load, t Pick-up height, mm
Lifting height, mm Fork length, mm
Fork width, mm  Weight, kg
Turning radius, mm
Aisle width, mm
      Battery
1,5  90 1600/2500/3000/3300 1150 570 810/850/860/890 1605 820 24v-240Ah
