JJ (jaw-jaw) turnbuckle
JJ turnbuckle is made from high-quality steel and designed to adjust the tension of wire ropes and chains when forming the guys. It is not used for load-handling operations. Types of attachment: jaw-jaw. Turnbuckles produced by TOR Industries Company provide a high level of reliability and safety when performing of operations.

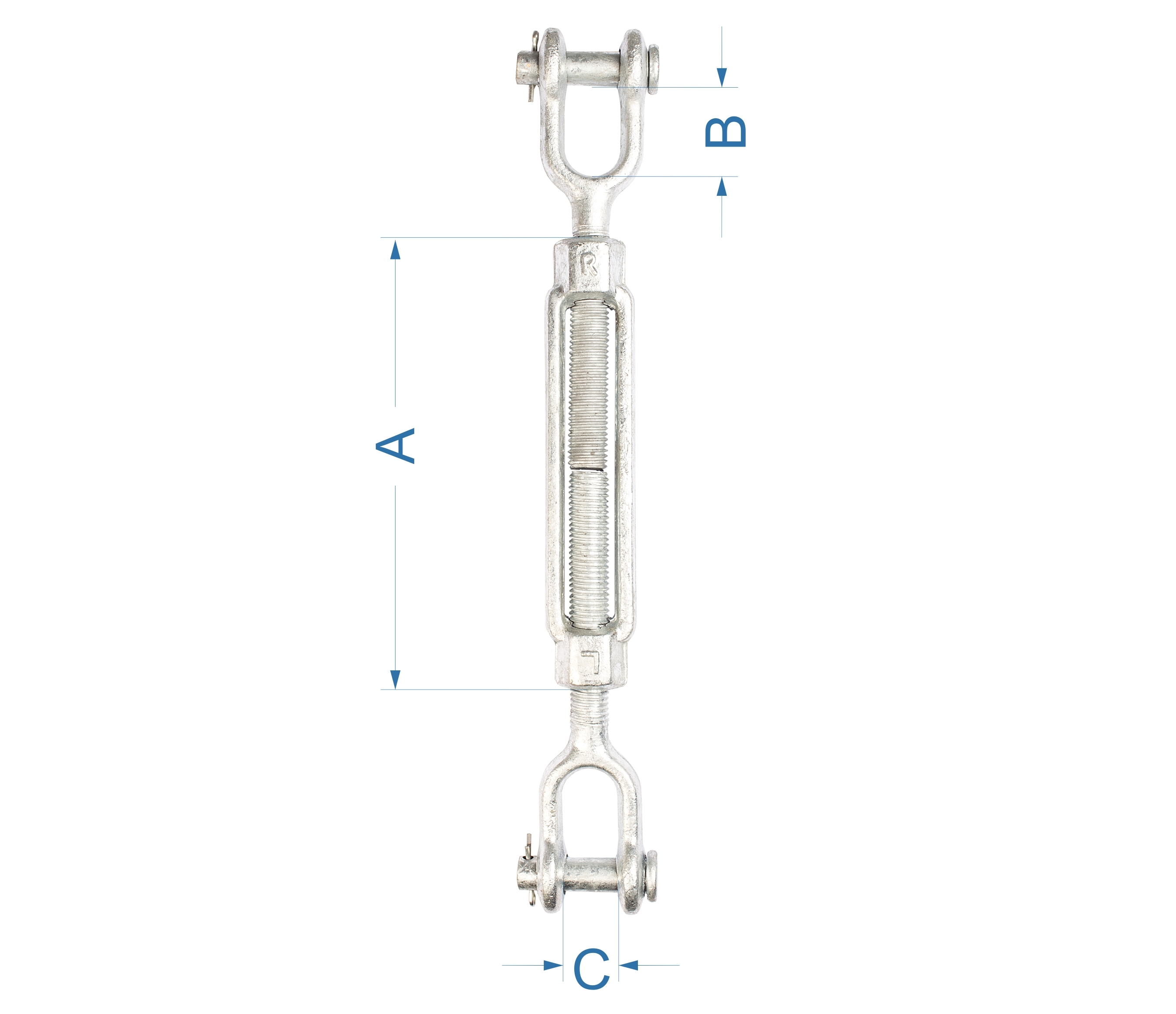

| Working load (max), t | Screw-thread, mm | A, mm | B, mm | C, mm | Weight, kg |
| 0,23 | M6 | 187-288 | 16,0 | 10,5 | 0,16 |
| 0,36 | M8 | 221-348 | 22,0 | 12,0 | 0,24 |
| 0,54 | M10 | 302-416 | 22,0 | 13,0 | 0,37 |
| 1,00 | M12 | 338-452 | 26,0 | 16,0 | 0,71 |
| 1,00 | M12 | 414-585 | 26,0 | 16,0 | 0,79 |
| 1,00 | M12 | 490-719 | 26,0 | 16,0 | 1,09 |
| 1,60 | M16 | 394-508 | 33,0 | 18,0 | 1,23 |
| 1,60 | M16 | 470-641 | 33,0 | 18,0 | 1,56 |
| 1,60 | M16 | 546-775 | 33,0 | 18,0 | 1,77 |
| 2,35 | M19 | 432-546 | 38,0 | 23,0 | 1,86 |
| 2,35 | M19 | 508-679 | 38,0 | 23,0 | 2,48 |
| 2,35 | M19 | 584-813 | 38,0 | 23,0 | 2,92 |
| 2,35 | M19 | 737-1080 | 38,0 | 23,0 | 3,26 |
| 3,27 | M22 | 618-854 | 44,0 | 27,0 | 3,71 |
| 3,27 | M22 | 772-1121 | 44,0 | 27,0 | 4,89 |
| 4,50 | M25 | 676-905 | 52,0 | 30,0 | 4,50 |
| 4,50 | M25 | 829-1172 | 52,0 | 30,0 | 6,35 |
| 4,50 | M25 | 980-1437 | 52,0 | 30,0 | 8,20 |
| 6,84 | M32 | 753-989 | 73,0 | 44,0 | 9,34 |
| 6,84 | M32 | 905-1255 | 73,0 | 44,0 | 11,12 |
| 6,84 | M32 | 1058-1521 | 73,0 | 44,0 | 12,79 |
| 9,63 | M38 | 804-1052 | 70,0 | 52 | 13,92 |
| 9,63 | M38 | 956-1318 | 70,0 | 52 | 16,67 |
| 9,63 | M38 | 1109-1585 | 70,0 | 52 | 16,67 |
