HE (hook-eye) turnbuckle
HE turnbuckle is made from high-quality steel and designed to adjust the tension of wire ropes and chains when forming the guys. It is not used for load-handling operations. Types of attachment: hook-eye. Turnbuckles produced by TOR Industries Company provide a high level of reliability and safety when performing of operations.

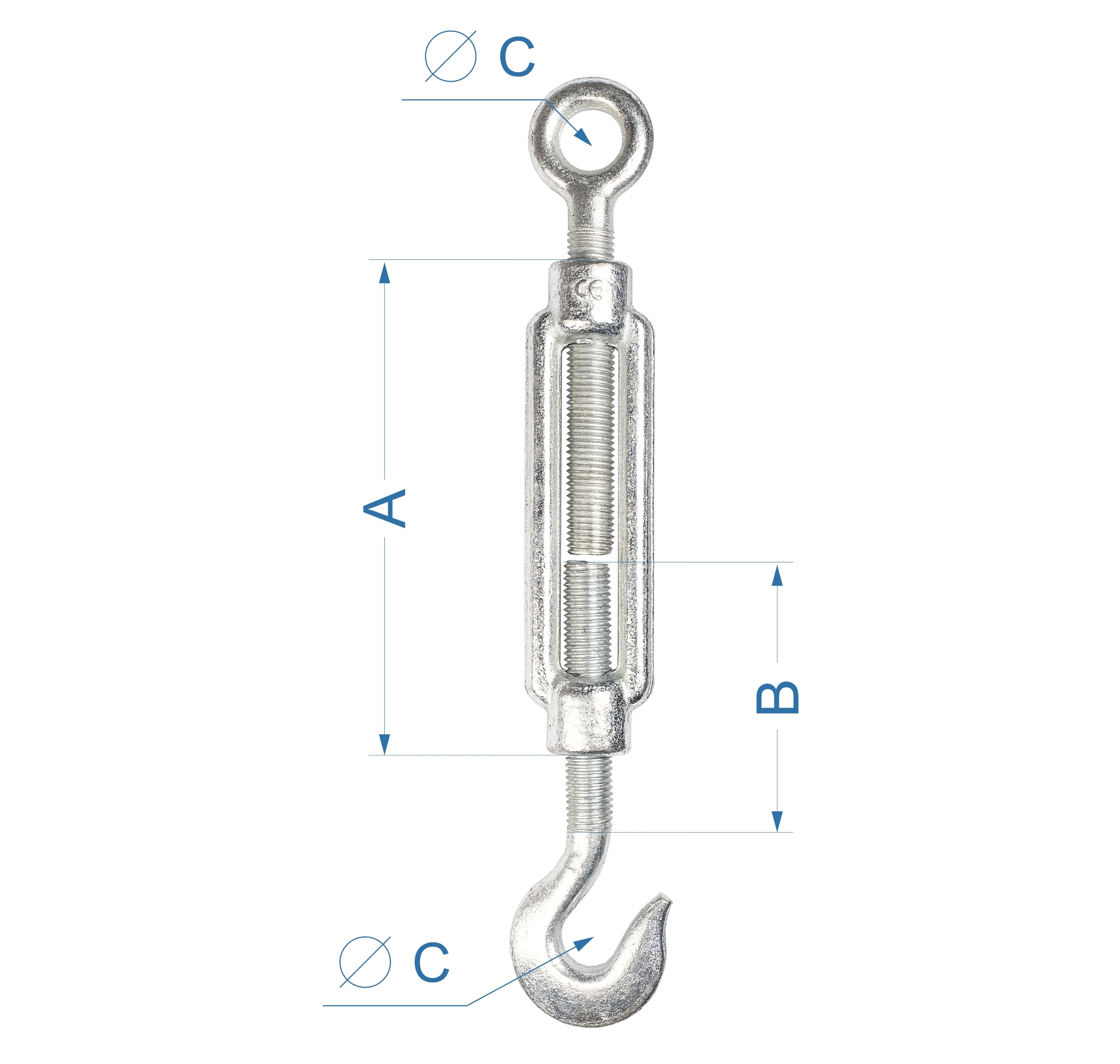

| Working load (max), t | Screw-thread, mm | A, mm | B, mm | C, mm | Weight, kg |
| 0,23 | M6 | 110,0 | 55,0 | 9,0 | 0,07 |
| 0,36 | M8 | 110,0 | 57,0 | 10,0 | 0,15 |
| 0,54 | M10 | 125,0 | 68,0 | 14,0 | 0,22 |
| 1,00 | M12 | 125,0 | 70,0 | 16,0 | 0,43 |
| 1,30 | M14 | 140,0 | 75,0 | 18,0 | 0,54 |
| 1,60 | M16 | 170,0 | 88,0 | 22,0 | 0,80 |
| 2,35 | M20 | 200,0 | 105,0 | 24,0 | 1,45 |
| 3,27 | M22 | 220,0 | 118,0 | 28,0 | 1,86 |
| 4,50 | M24 | 255,0 | 135,0 | 28,0 | 2,50 |
| 5,20 | M27 | 255,0 | 135,0 | 34,0 | 3,84 |
| 5,67 | M28 | 255,0 | 135,0 | 34,0 | 5,40 |
| 6,84 | M30 | 255,0 | 135,0 | 31,0 | 5,40 |
