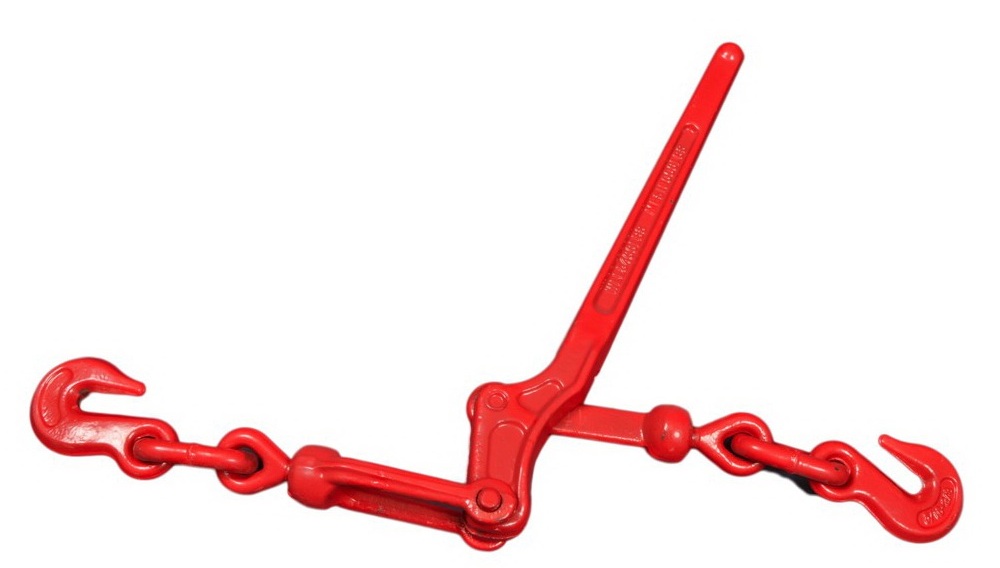

Chain tensioner of S-type

Chain tensioner of S-type is used to adjust the tension of the chains when forming guys. It is often used for fixing of cargo during transportation. Tension of the chain is performing by virtue of operation of the lever with the fixation in the final position due to the self-clamping eccentric mechanism. Chain tensioners produced by TOR Industries Company provide reliable fixing of cargo and ensure the safety of operations.

Characteristics

Chain, mm  Effort, kg Coupler, mm Weight, kg
6-8 1180 439-360 1,60
8-10 2450 589-495 4,77
10-13 4170 670-560 5,86
13-16 5900 765-657 6,54
