Swivel hook 322A

Steel hook of 322A type is used in the production of chain slings, wire-rope slings and textile slings (hoist cables) and load-handling devices, as well as when carrying out towing and rigging operations as an end element. Characteristics: 4x safety margin for tearing (8th strength class), has a swinging eyelet with a 360-degree rotation angle (facilitates the slinging operations with cargo) and equipped with a plate lock. Using components of the 8th strength class produced by TOR Industries Company makes it possible to reduce the weight of the sling while maintaining the rated reliability parameters.


Characteristics

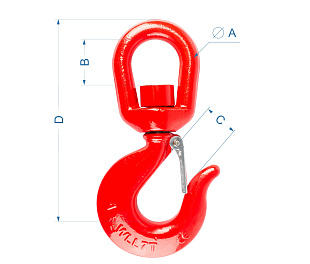

Rated load, t Tear strength, t A, mm   B, mm   C, mm   D, mm Weight, kg
1,0 4,0 10,0 32,0 21,5 147,0 0,3
1,5 6,0 12,5 38,0 22,5 153,5 0,5
2,0 8,0 16,0 42,0 24,0 176,0 0,9
3,0 12,0 18,0 42,0 29,0 191,0 1,0
5,0 20,0 19,0 48,0 34,0 219,0 1,9
7,0 28,0 25,0 63,0 35,0 290,0 4,1
11,0 44,0 28,0 65,0 53,0 337,0 6,5
15,0 60,0 33,0 78,0 55,0 405,0 10,5
