Jaw joint hook

Jaw joint hook

A steel hook with a jaw joint is used in the producing of chain slings (hoist cables) and load-handling devices, as well as when carrying out towing and rigging operations as end element. Characteristics: 4x safety margin for tearing (8th strength class), has a jaw fastening system, it is equipped with a plate lock. Due to the jaw fastening (junction) system it can be fastened to a sling without the use of connecting links (with the help of a steel locking pin, fixed by a cotter pin). Using components of the 8th strength class produced by TOR Industries Company makes it possible to reduce the weight of the sling while maintaining the rated reliability parameters.

Characteristics

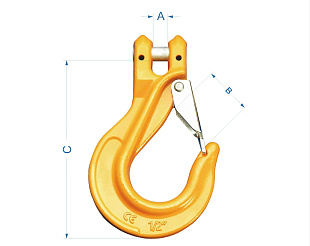

Rated load, t Tear strength, t Chain, mm A, mm   B, mm C, mm Weight, kg
1,12 4,5 6 8,0 26,0 99,0 0,32
2,0 8,0 8 9,5 29,0 118,0 0,48
3,15 12,6 10 13,0 39,0 139,0 0,95
5,3 21,2 13 16,5 47,0 170,5 1,8
8,0 32,0 16 21,5 55,0 204,0 3,4
12,5 50,0 20 24,0 61,0 238,0 6,0
15,0 60,0 22 27,0 72,0 275,0 10,4
21,2 84,8 26 30,0 85,0 325,0 14,5
31,5 126,0 32 35,0 106,0 405,0 27,0
