DRIVE GCL TROLLEY FOR THE HAND HOIST
The hoists trolley GCL with chain drive is designed for hanging the fixed hoist on the double T-section beam and the hoist horizontal relocation. The trolley allows to relocate the hoist, including the loaded one, to a safe location. One should consider carrying capacity and the drive chain length when choosing the trolley. The trolleys for GCL tackle manufactured by TOR Industries comply with quality requirements of Directive 2006/42/EC on Machinery Factsheet for Machinery and have CE certificate.

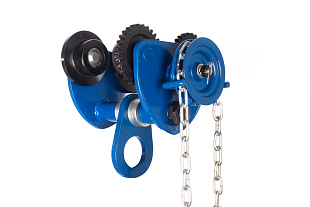

Drive GCL trolley for the hand hoist
Characteristics
|
Model |
Rated load, t | Lifting height, m | I-beam width, mm | Weight, kg |
| GCL | 1 | 3 | 81-115 | 9,00 |
| GCL | 1 | 6 | 81-115 | 11,00 |
| GCL | 1 | 9 | 81-115 | 13,00 |
| GCL | 1 | 12 | 81-115 | 15,00 |
| GCL | 2 | 3 | 90-135 | 16,00 |
| GCL | 2 | 6 | 90-135 | 18,00 |
| GCL | 2 | 9 | 90-135 | 20,00 |
| GCL | 2 | 12 | 90-135 | 22,00 |
| GCL | 3 | 3 | 110-145 | 19,00 |
| GCL | 3 | 6 | 110-145 | 21,00 |
| GCL | 3 | 9 | 110-145 | 23,00 |
| GCL | 3 | 12 | 110-145 | 25,00 |
| GCL | 5 | 3 | 115-170 | 36,00 |
| GCL | 5 | 6 | 115-170 | 38,00 |
| GCL | 5 | 9 | 115-170 | 40,00 |
| GCL | 5 | 12 | 115-170 | 42,00 |
| GCL | 10 | 3 | 155-180 | 43,00 |
| GCL | 10 | 6 | 155-180 | 45,00 |
| GCL | 10 | 9 | 155-180 | 47,00 |
| GCL | 10 | 12 | 155-180 | 49,00 |
| GCL | 20 | 3 | 155-190 | 51,00 |
| GCL | 20 | 6 | 155-190 | 53,00 |
| GCL | 20 | 9 | 155-190 | 55,00 |
| GCL | 20 | 12 | 155-190 | 57,00 |
