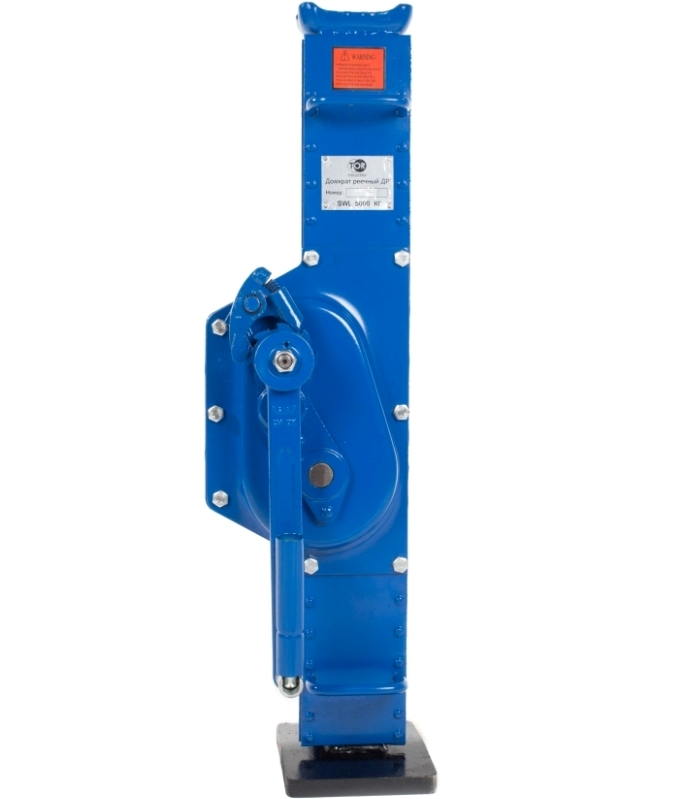

SJ and SJL rack-operated jacks

Multipurpose rack-operated SJ and SJL jacks (with low grab) by TOR Industries are distinguished for materials and workmanship high quality with price being by far reasonable. The jacks design allows to hoist cargo both from the upper (main) working platform, and with the lower grab device (foot). SJL model can pick up cargo from 30 mm. Operation is allowed both in vertical and horizontal planes. Design features of this jack type allow cargo lifting, holding and lowering. Rack-operated SJ and SJL jacks are recommended for industrial and construction applications when works of any intensity are carried out.  Rack-operated SJ and SJL jacks manufactured by TOR industries comply with quality requirements of Directive 2006/42/EC on Machinery Factsheet for Machinery and have CE certificate.

Characteristics

Model
Rated load, t
Rack stroke, mm Pick-up height, mm Paw pick height, mm Handle force, N  Weight, kg
SJ 1,5 300 600 60 190 10,7
SJ 3,0 370 720 70 196 19,9
SJ 5,0 350 737 87 235 31,6
SJ 10,0 380 794 100 431 52,6
SJ 16,0 300 830 115 580 64,5
SJ 20,0 300 880 115 650 72,0
SJ 25,0 410 950 110 750 91,0
SJL 3,0 370 720 30 196 23,0
SJL 5,0 350 735 30 235 32,0
SJL 10,0 380 805 30 431 53,0
