Mounting supporting block

The mounting supporting block

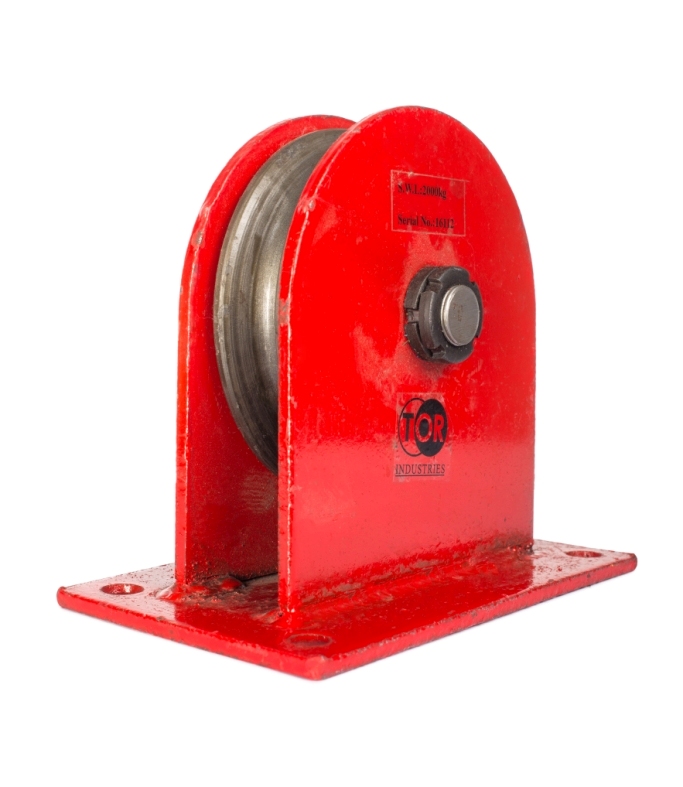

The mounting supporting block is equipped with a pad with which it is attached to the support. It is used in industrial enterprises and construction objects to measure the hauling capacity, and also – as the part of the polyspast. The mounting supporting blocks comply with quality requirements of Directive 2006/42/EC on Machinery Factsheet for Machinery and have CE certificate.


Characteristics

Model
 Rated load, t D rope, mm D pulley, mm Platform size, mm Weight, kg
Supporting block  0,5 6,2-7,7 82 90х145 1,47
Supporting block 1,0 7,7-11,0 102 100х155 2,27
Supporting block
 2,0 11,0-14,0 138 120х200 4,63
Supporting block
 3,0 12,5-15,5 160 145х220 7,7
Supporting block
 5,0 15,5-18,5 200 160х260 10,3
