Mounting multiroller blocks HQG

The mounting multiroller blocks HQG

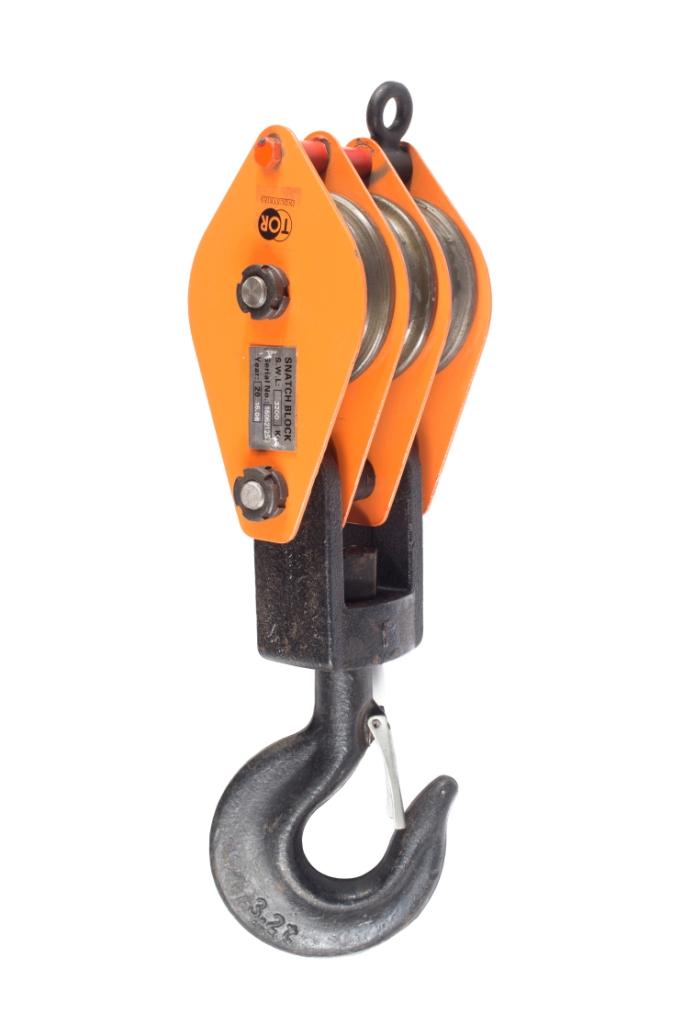

The mounting 2x and 3x roller blocks of HQG type are chiefly used for making compound polyspasts. Unlike the single-roller modifications, they are not equipped with the snatch cheek option. Offered in two versions: with a hook and a lug (ear). They can be equipped with additional service lug (ear) located on the pulleys set side. The mounting 2x and 3x roller blocks of HQG type comply with quality requirements of Directive 2006/42/EC on Machinery Factsheet for Machinery and have CE certificate.


Characteristics

Model
 Rated load, t Number of rollers D rope, mm D pulley, mm Weight, kg
with a hook
 1 2 6,2-7,7 82 2,8
with a hook
 2 2 7,7-11,0 102 5,3
with a hook
 3,2 2 11,0-14,0 102 10,3
with a hook
 3,2 3 7,7-11,0 102 8,0
with a hook
 5 2 12,5-15,5 160 16,0
with a hook
 5 3 11,0-14,0 138 14,9
with a hook
 10 2 17,0-20,0 220 40,7
with a hook
 10 3 15,5-18,5 220 40,0
with a hook
 20 2 26,0-28,0 350 109,0
with a hook
 20 3 20,0-23,0 260 90,0
with lug 1 2 6,2-7,7 82 2,6
with lug 2 2 7,7-11,0 102 5,0
with lug 3,2 2 11,0-14,0 102 10,0
with lug 3,2 3 7,7-11,0 102 7,8
with lug 5 2 12,5-15,5 160 15,8
with lug 5 3 11,0-14,0 138 14,5
with lug 10 2 17,0-20,0 220 31,8
with lug 10 3 15,5-18,5 220 31,8
with lug 20 2 26,0-28,0 350 109,0
with lug 20 3 20,0-23,0 260 75,0
with lug 32 2 31,0-35,0 440 87,5
with lug 32 3 26,0-28,0 350 129,0
