Mounting blocks with snatch cheek HQG(L)

The mounting blocks with snatch cheek HQG(L)

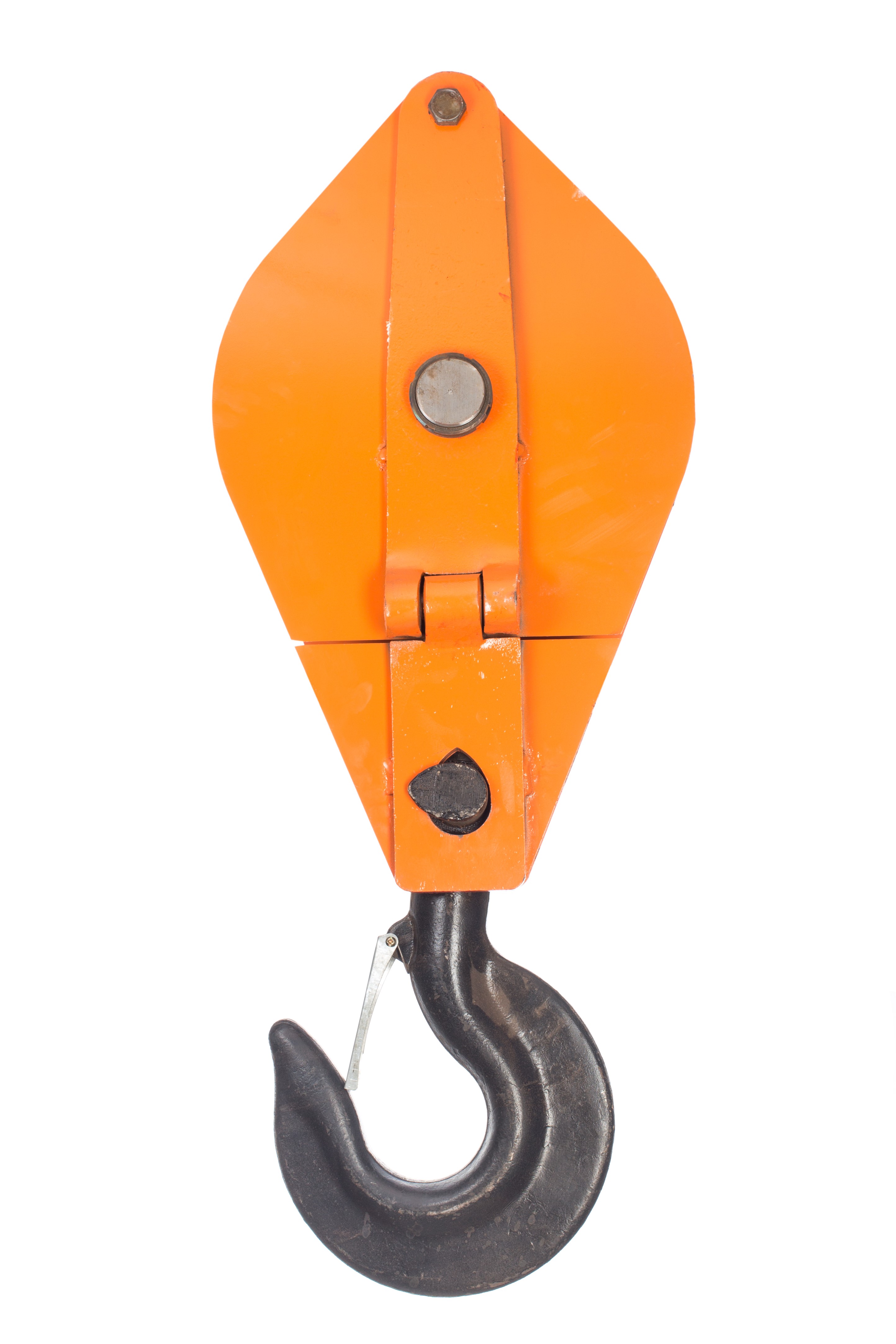

Contracting mounting blocks with snatch cheek, HQG(L) type are offered in two versions: with a hook and a lug (ear). This block type is the most popular among the users, as the snatch cheek allows to promptly pull down (reeve off) the rope into the block. The pulleys of HQG(L) blocks are equipped with a bearing. The mounting blocks HQG(L) comply with quality requirements of Directive 2006/42/EC on Machinery Factsheet for Machinery and have CE certificate.


Characteristics

Model
 Rated load, t Number of rollers D rope, mm D pulley, mm Weight, kg
with a hook 0,5 1 6,2-7,7 82 1,4
with a hook 1 1 7,7-11,0 102 2,6
with a hook 2 1 11,0-14,0 138 5,1
with a hook 3,2 1 12,5-15,5 160 8,9
with a hook 5 1 15,5-18,5 200 14,5
with a hook 10 1 23,0-24,5 300 41,7
with a hook 20 1 31,0-35,0 440 112,0
with lug 0,5 1 6,2-7,7 82 1,3
with lug 1 1 7,7-11,0 102 2,4
with lug 2 1 11,0-14,0 138 4,9
with lug 3,2 1 12,5-15,5 160 8,5
with lug 5 1 15,5-18,5 200 14,1
with lug 10 1 23,0-24,5 300 40,0
with lug 20 1 31,0-35,0 440 112,0
with lug 32 1 36,0-40,0 550 310,0
