Mechanical clamp for sandwich-panels, TG-SP

Mechanical clamp for sandwich-panels, TG-SP type

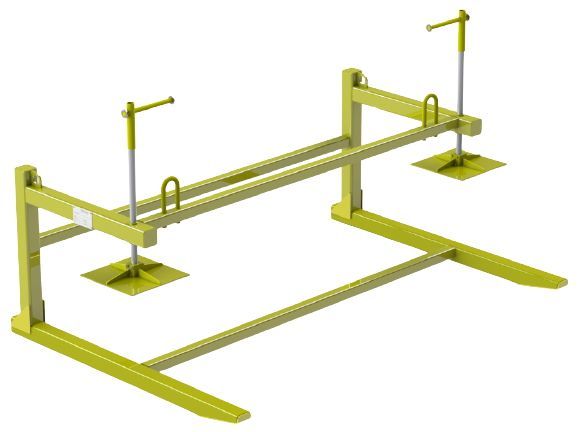

Mechanical clamp for sandwich-panels of TG-SP type is designed for lifting and relocation of wall sandwich-panels with thickness from 84 to 200 mm. The structure is a rigid steel frame with a lug in the center which is designed to ensure the product's reliability. The claw has polymer strips for the panel surface protection. Used in pairs. Mechanical clamps of TG-SP type comply with quality requirements of Directive 2006/42/EC on Machinery Factsheet for Machinery and have CE certificate.


Type Rated load, t Thickness of panel,  mm Weight, kg
TG-SP 0,15 84-200 23,0
