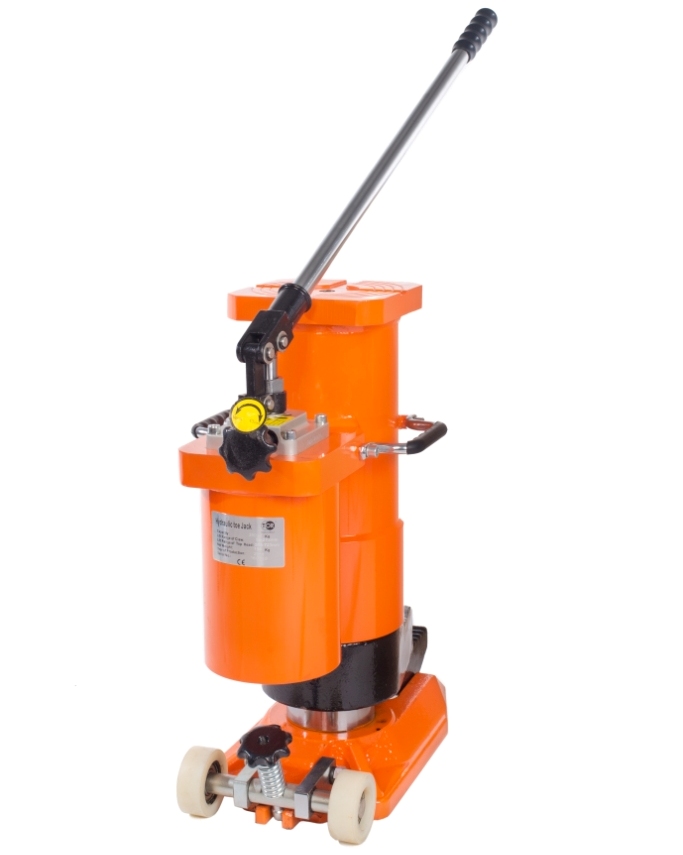

Hydraulic НМ jack

Powerful, reliable and high-performance НМ jacks are designed for operation in industrial facilities and construction sites. Recommended for operation in facilities with any operations intensity. Advantages: a long lever (convenience and high performance), two working pads (the upper and lower), rotates through 360 deg. (possibility of cargo rotation), high accuracy of cargo positioning, high reliability, overload protection. Hydraulic НМ jack manufactured by TOR Industries complies with quality requirements of Directive 2006/42/EC on Machinery Factsheet for Machinery and has CE certificate.


Characteristics

Model
Rated load, t
Platforms range of work, mm
Paw working range, mm Force on the lever (max), kg Weight, kg
НМ 5 368-573 25-230 38 25
НМ 10 420-650 30-260 40 35
НМ 25 505-720 58-273 40 102
