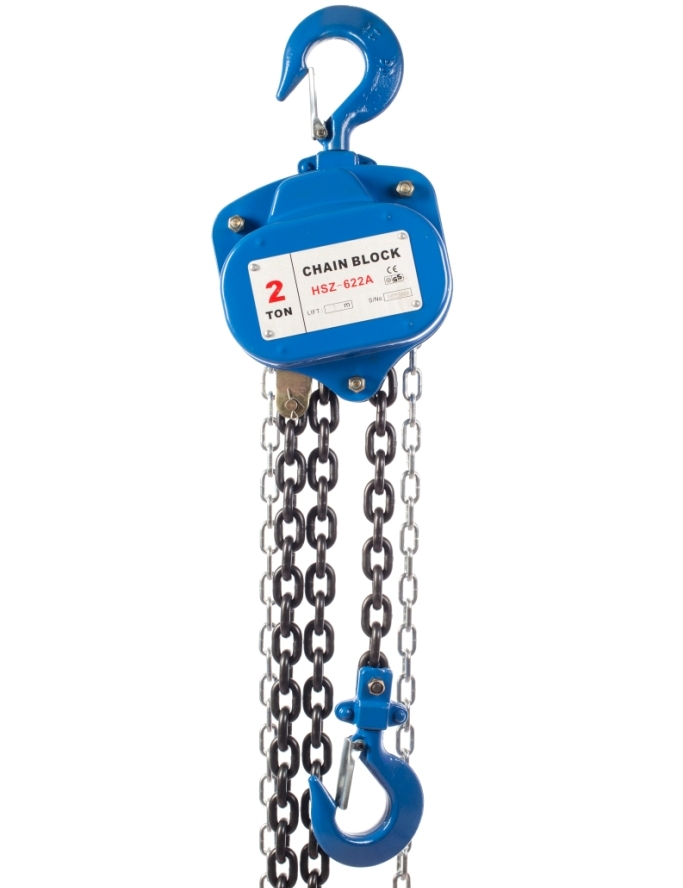

Hand chain HSZ 622-А hoist
Hand chain HSZ 622-А hoist is designed for use in facilities characterized by high intensity of operations. 4:1 strength factor. Carrying ca-pacity from 0.5 to 50 tons. Main advantages of HSZ 622-А type hoist: very high strength (the body is assembled with strong stainless steel bolts), components with an increased strength factor, a gear reduction rate greater than that of conventional hoists, a special gears harden-ing technology is used, the gears have an anti-corrosion coating, reinforced friction elements of the brake mechanism have a thickness of 3 mm (for conventional hoists 2 mm). The chain hoist HSZ of 622-А type fully comply with qual-ity requirements of Directive 2006/42/EC on Machinery Factsheet for Machinery and have CE certificate.
Hand chain HSZ 622-А hoist
Characteristics
Rated load, t | 0,5 | 1 | 2 | 3 | 5 | 10 | 20 | 30 | 50 |
Chain length, m |
3-18 | 3-18 | 3-18 | 3-18 | 3-18 | 3-18 | 3-12 | 3-12 | 3-12 |
Load chain, mm |
6х18 | 6х18 | 8Х24 | 8Х24 | 10х30 | 10х30 | 10х30 | 10х30 | 10х30 |
Lifting effort (max), N | 231 | 309 | 360 | 340 | 414 | 414х2 | 414х2 | 414х2 | 414х2 |
Pulley block multiplicity |
1 | 1 | 1 | 2 | 2 | 4 | 8 | 12 | 22 |
Weight (chain 3 m), kg |
10,9 | 12,9 | 21,2 | 27 | 45,5 | 83 | 193 | 220 | 1092 |
Add.weight for 1 m chain length, kg | 1,7 | 1,7 | 2,3 | 3,7 | 5,6 | 9,7 | 19,4 | 26,4 | 48,4 |
