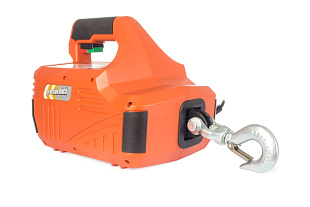

SQ Electric winch

SQ Electric winch is referred to the household class of load-handling equipment. Advantages: moderate price, small dimensions and weight, power supply from 220V mains, availability of models energized from accumulator batteries, possibility of distance control via distance control panel (some models), complete with a rope. Recommended for household applications and in facilities with low intensity of operations. SQ Electric winch manufactured by TOR Industries complies with quality requirements of Directive 2006/42/EC on Machinery Factsheet for Machinery and has CE certificate.


Characteristics

Model
Rated load, kg
Drum capacity, m Rope diameter, mm
Rope completing
Speed, m/min. Power, kw operating voltage, V Weight, kg
SQ 250 8 4,8 Yes 5 0,7 220 7
SQ 450 4,6 5,8 Yes
5 1,2 220 7
SQ 450 4,6 5,8 Yes
5 0,72 24 8
