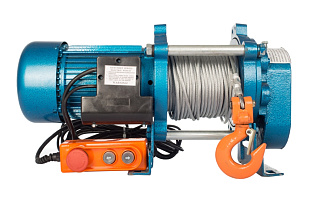

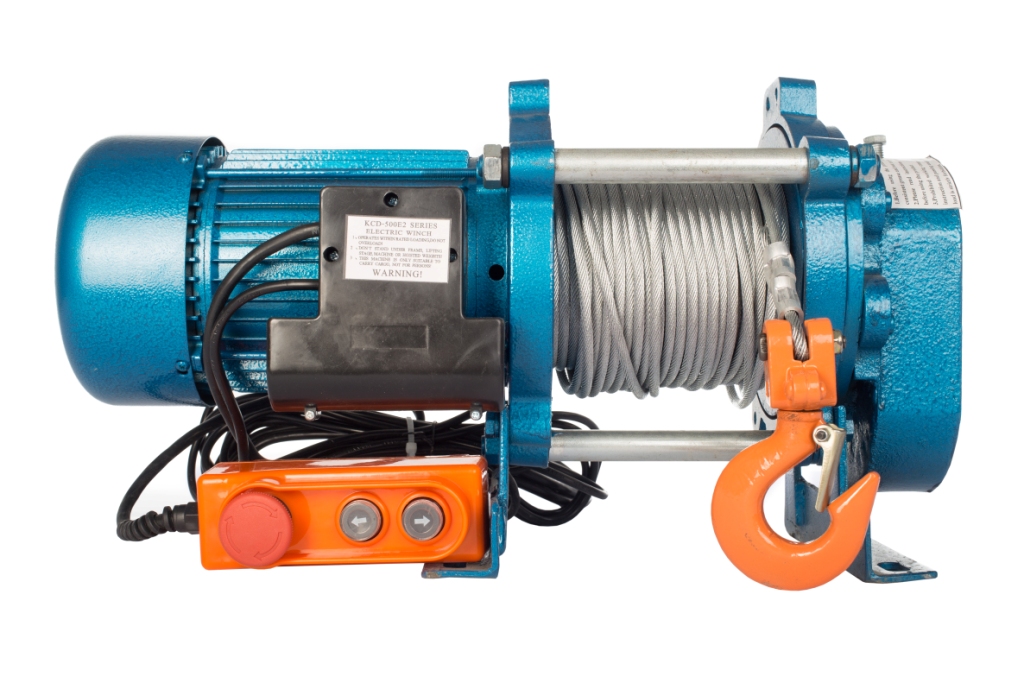

KCD Electric winch

KCD Electric winch

KCD electric winch is referred to the class of inexpensive semi industrial winches and is recommended for household and industrial facilities applications for low-level operations. Not designed for regular load-handling operations in high-rise buildings. Advantages: moderate price, small dimensions and weight, drum rope capacity up to 100 m, possibility of power supply from 220V mains (some models). KCD Electric winch manufactured by TOR Industries complies with quality requirements of Directive 2006/42/EC on Machinery Factsheet for Machinery and has CE certificate.

Characteristics

Model
 Rated load, kg
 Drum capacity, m
 Rope diameter, mm
 Rope completing
 Speed, m/min.
 Power, kw
 Operating voltage, V
 Weight, kg
KCD 300 30 6 Yes
 14 1,0 220 34
KCD 300 70 6 Yes
 14 1,0 220 37
KCD 300 30 6 Yes
 14 1,0 380 45
KCD 300 70 6 Yes
 14 1,0 380 50
KCD 500 30 6 Yes
 14 1,0 220 34
KCD 500 70 6 Yes
 14 1,0 220 37
KCD 500 100 6 Yes
 14 1,0 220 41
KCD 500 30 6 Yes
 14 1,0 380 45
KCD 500 70 6 Yes
 14 1,0 380 50
KCD 500 100 6 Yes
 14 1,0 380 58
KCD 750 70 7,7 Yes
 14 1,5 380 70
KCD 1000 70 11 Yes
 14 3,0 380 176
KCD 1000 100 11 Yes
 14 3,0 380 200
