JM Electric winch

JM Electric winch

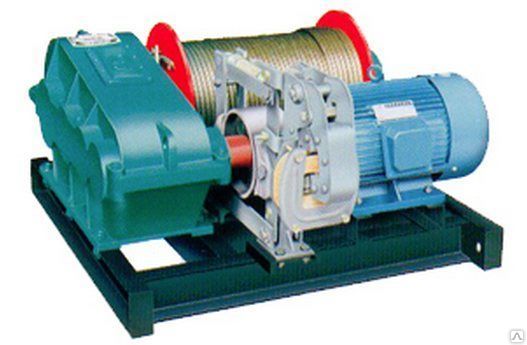

JM electric winch is a professional electric winch designed for operation at construction sites and industrial facilities. Recommended for cargo lifting on a multistoried buildings. Advantages:  powerful engine, reliable design, high performance, equipped with hydraulic brakes, drum rope capacity up to 450 m, models with carrying capacity from 0.5 to 10.0 tones, reasonable price. JM electric winch manufactured by TOR Industries complies with quality requirements of Directive 2006/42/EC on Machinery Factsheet for Machinery and has CE certificate.


Characteristics

Model
 Rated load, kg
 Drum capacity, m
 Rope diameter, mm Rope completing
 Speed, m/min
 Power, kw
 Operating voltage, V
 Weight (without rope), kg
JM 0,5 100 7,7 No 15 2,2 380 100
JM 1,0 120 9,3 No
 15 5,5 380 160
JM 2,0 150 12,5 No
 15 7,5 380 270
JM 3,0 160 15,5 No
 15 11,0 380 375
JM 5,0 250 19,5 No
 9 11,0 380 710
JM 8,0 280 26,0 No 9 15,0 380 1400
JM 10,0 300 30,0 No
 9 22,0 380 1800
