The electric chain HHBD-T hoist

The electric chain HHBD-T hoist

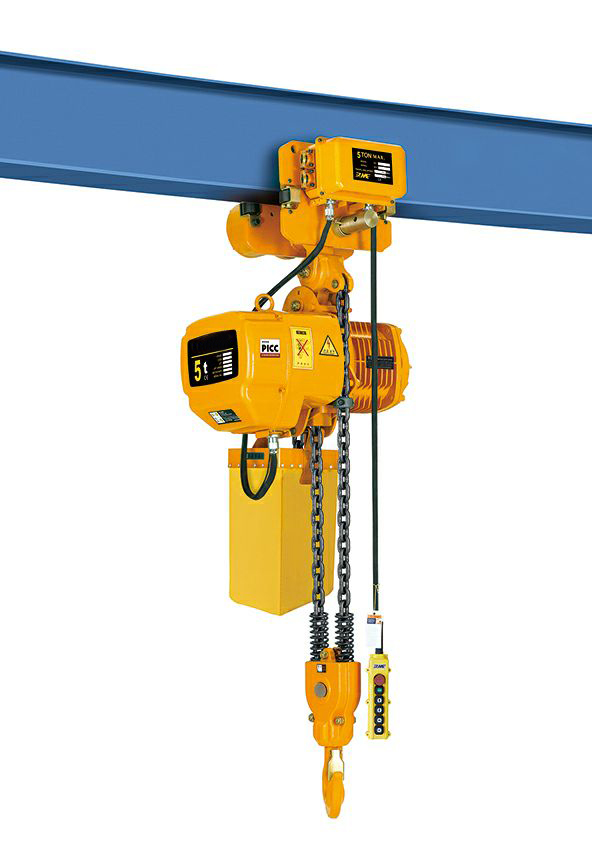

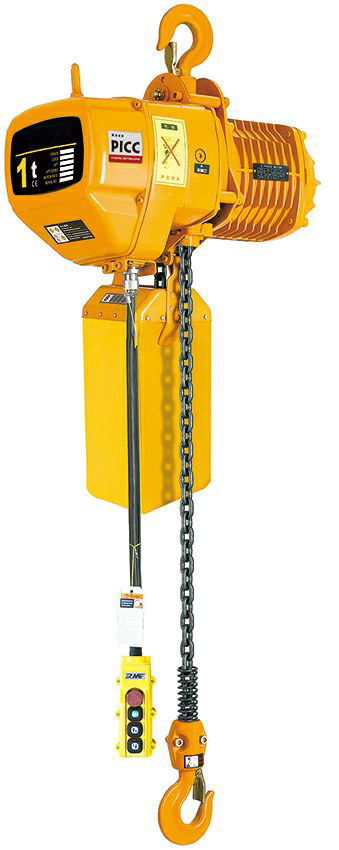

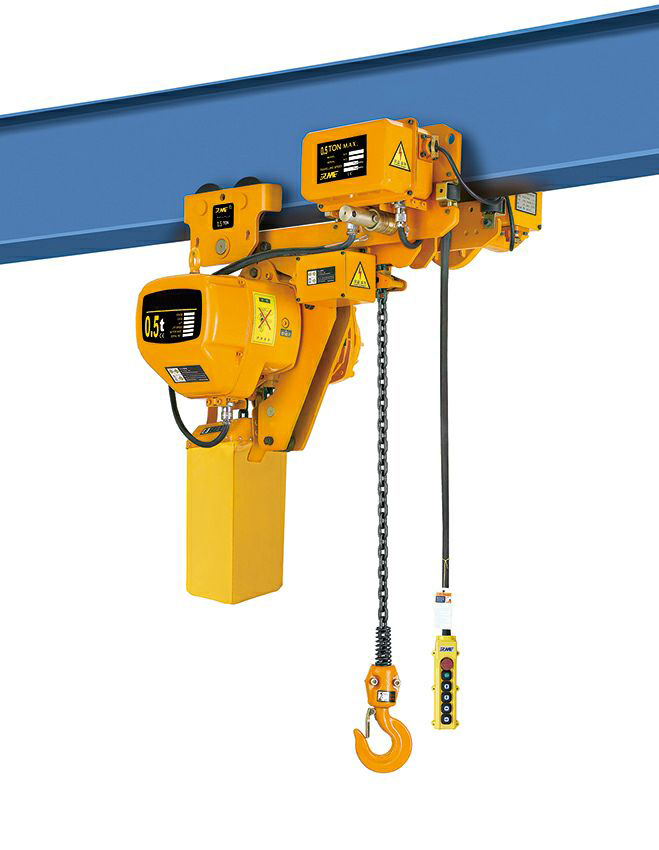

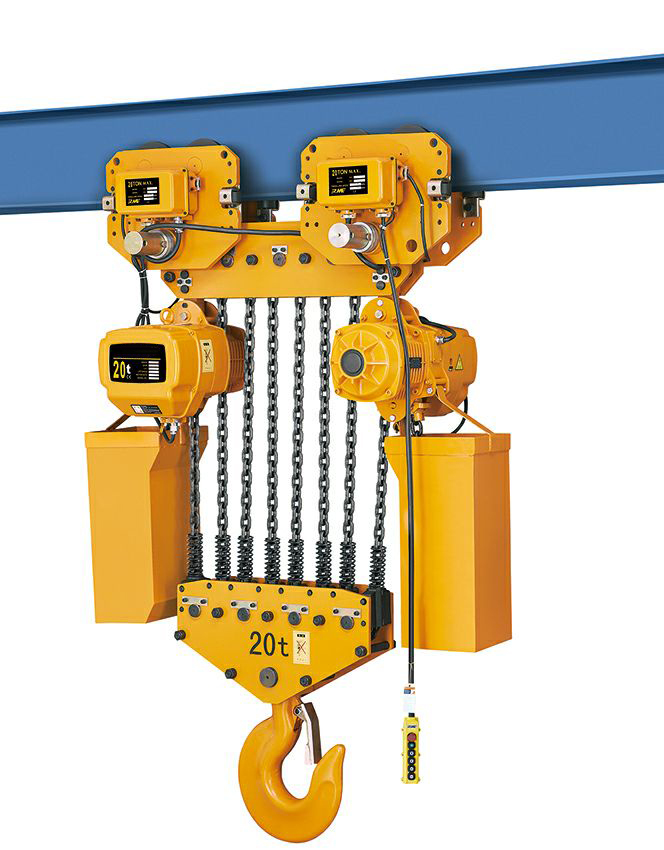

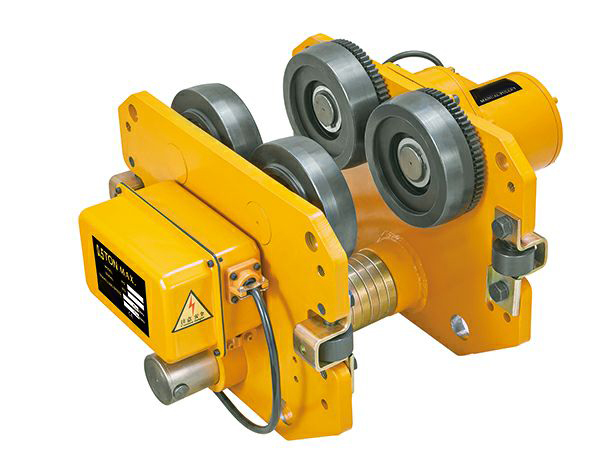

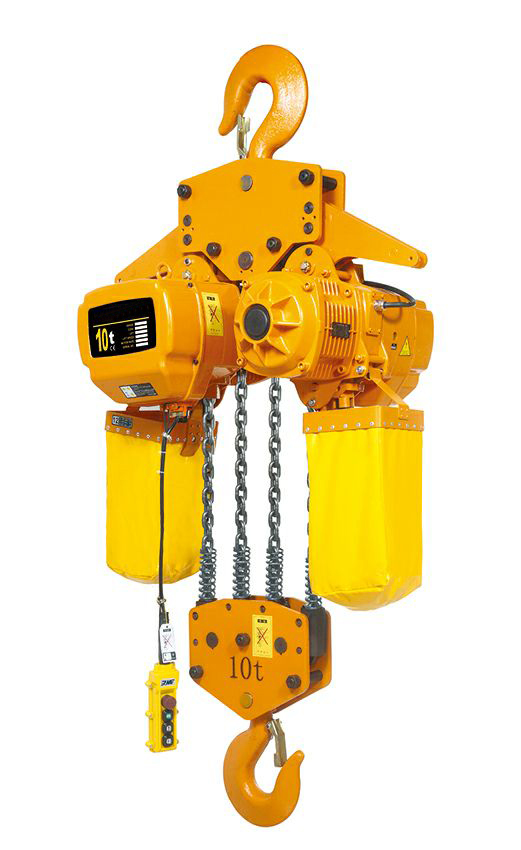

The electric HHBD-T hoist is a reliable modern telpher which uses a steel cargo lifting chain instead of a rope. The chain HHBD-T hoist advantages compared to the rope telphers: small size, absence of the drum, easy mounting, the chain long service life, absence of the chain displacement, easy chain replacement. Standard HHBD-T modification is equipped with the electric drive trolley which allows to secure it on the double T-section beam of the relevant number and to horizontally relocate the hoist and a cargo. HHBD modification is a fixed one, whose movable trolley is replaced with the hook suspension. The electric chain HHBD-T and HHBD hoists manufactured by TOR Industries comply with quality requirements of Directive 2006/42/EC on Machinery Factsheet for Machinery and have CE certificate.


Characteristics

Model
 Rated load, t
 Lifting height, m
 Lifting speed, m/s
 Operating voltage, V
 Lifting motor power, kw
 I-beam width, mm
 Weight without trolley, kg
     Trolley weight, kg
HHBD-T 0,5 6 6,8 380 0.75 70-110 46 20
HHBD-T 1 6 6,8 380 1.5 58-153 53 40
HHBD-T 1 12 6,8 380 1.5 58-153 58 40
HHBD-T 2 6 3,4 380 1.5 82-178 60 50
HHBD-T 2 12 3,4 380 1.5 82-178 68 50
HHBD-T 3 6 3,4 380 3.0 100-178 115 60
HHBD-T 3 12 3,4
 380 3.0 100-178 125 60
HHBD-T 5 6 2,7 380 3.0 100-178 135 70
HHBD-T 5 12 2,7 380 3.0 100-178 150 70
HHBD-T 10 6 2,7 380 3.0 150-220 300 100
HHBD-T 10 12 2,7 380 3.0 150-220 330 100
