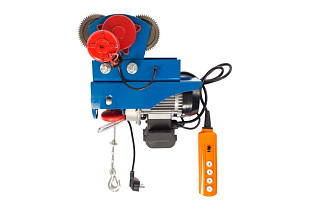

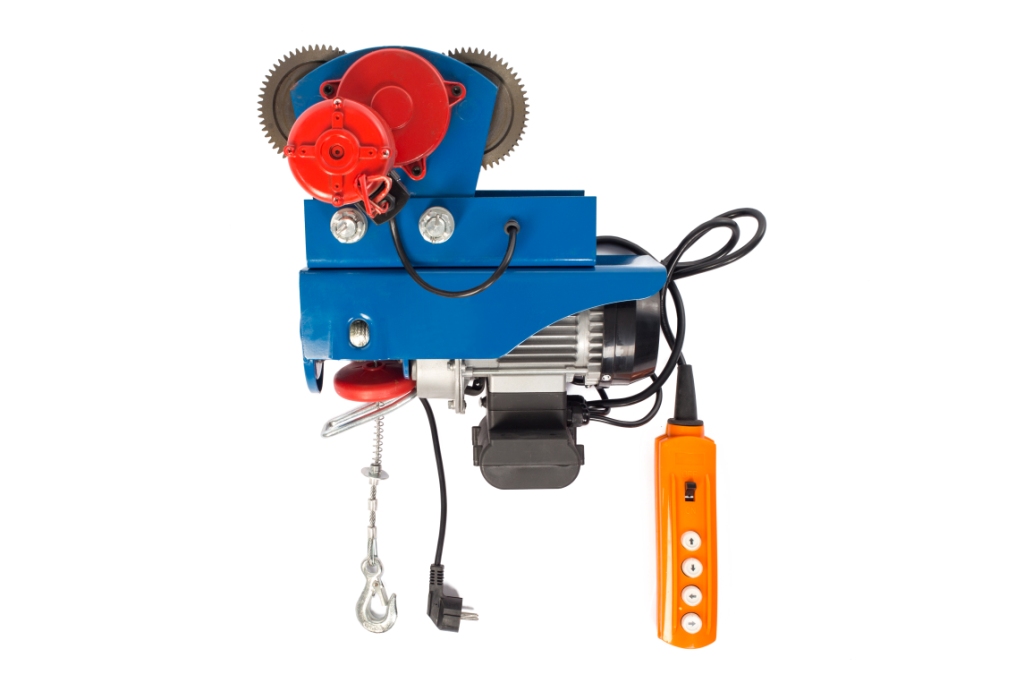

Electric rope-type movable PA hoist

Electric rope-type movable PA hoist

Electric rope-type movable PA hoist (electric mini hoist) is equipped with the trolley (sliding member) with electric drive which allows to secure it on the double T-section beam and to horizontally relocate the hoist and a cargo. Advantages of the movable electric hoist use compared to a fixed, enhanced sliding member: one socket, single control panel and a lesser wires number are used. Electric household PA hoists (electric mini hoists) are referred to a household equipment class and designed for lifting operations at a low intensity mode. The advantage of household PA mini electric hoists: energized from 220V household mains, compact size, low weight, moderate price. The household electric hoists manufactured by TOR Industries comply with quality requirements of Directive 2006/42/EC on Machinery Factsheet for Machinery and have CE certificate.


Characteristics

Model
Rated load, kg
Lifting height, m
Lifting speed, m/s
Operating voltage, V
Lifting motor power, W
 I-beam width, mm
Weight, kg
Movable PA 125/250 12/6 10/5 220 500 73-110 27,0
Movable PA 250/500 12/6 10/5 220 1000 73-110 33,0
Movable PA 500/1000 12/6 10/5 220 1600 73-110 47,0
Movable PA 600/1200 12/6 10/5 220 1900 73-110 47,5
