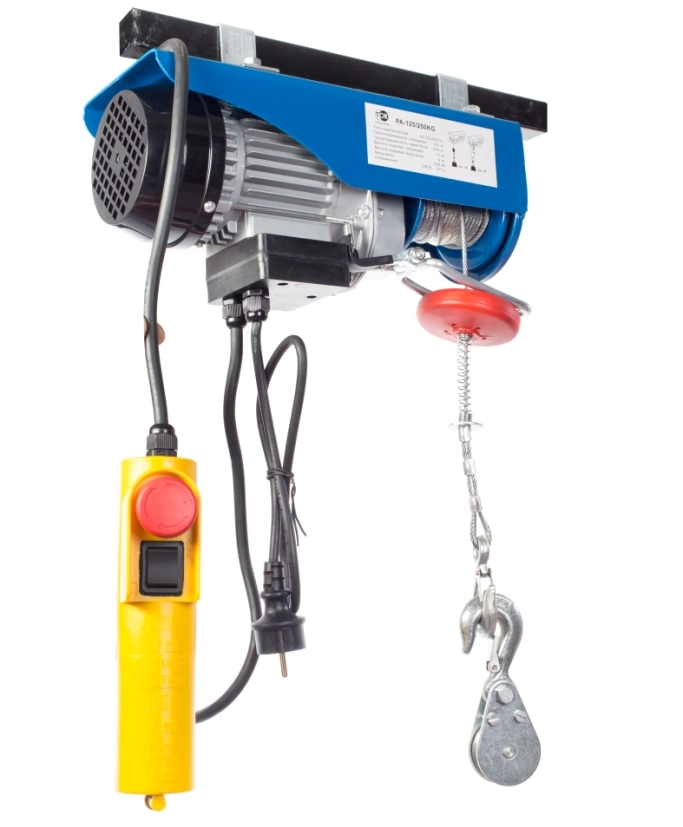

Electric rope-type fixed PA hoist

Electric rope-type fixed PA hoist

Electric rope-type PA hoists (electric mini hoists) are referred to a household equipment class and designed for lifting operations at a low intensity mode. The advantage of household PA mini electric hoists: energized from 220V household mains, compact size, low weight, moderate price. PA fixed electric mini hoist is secured to the beam with braces. When necessary, the fixed electric mini hoist can be equipped with movable trolley (sliding member) and installed on the double T-section beam. The household electric hoists manufactured by TOR Industries comply with quality requirements of Directive 2006/42/EC on Machinery Factsheet for Machinery and have CE certificate.

Characteristics

Model
 Rated load, kg
 Lifting height, m
 Lifting speed, m/s
 Operating voltage, V
 Lifting motor power, w
  I-beam width, mm
 Weight, kg
fixed PA 125/250 12/6 10/5 220 500 * 10,5
fixed PA 250/500 12/6 10/5 220 1000 * 16,2
fixed PA 250/500 20/10 10/5 220 1000 * 16,7
fixed PA 500/1000 12/6 10/5 220 1600 * 32,0
fixed PA 500/1000 20/10 10/5 220 1600 * 33,0
fixed PA 600/1200 12/6 10/5 220 1900 * 32,5
fixed PA 600/1200 20/10 10/5 220 1900 * 33,5
