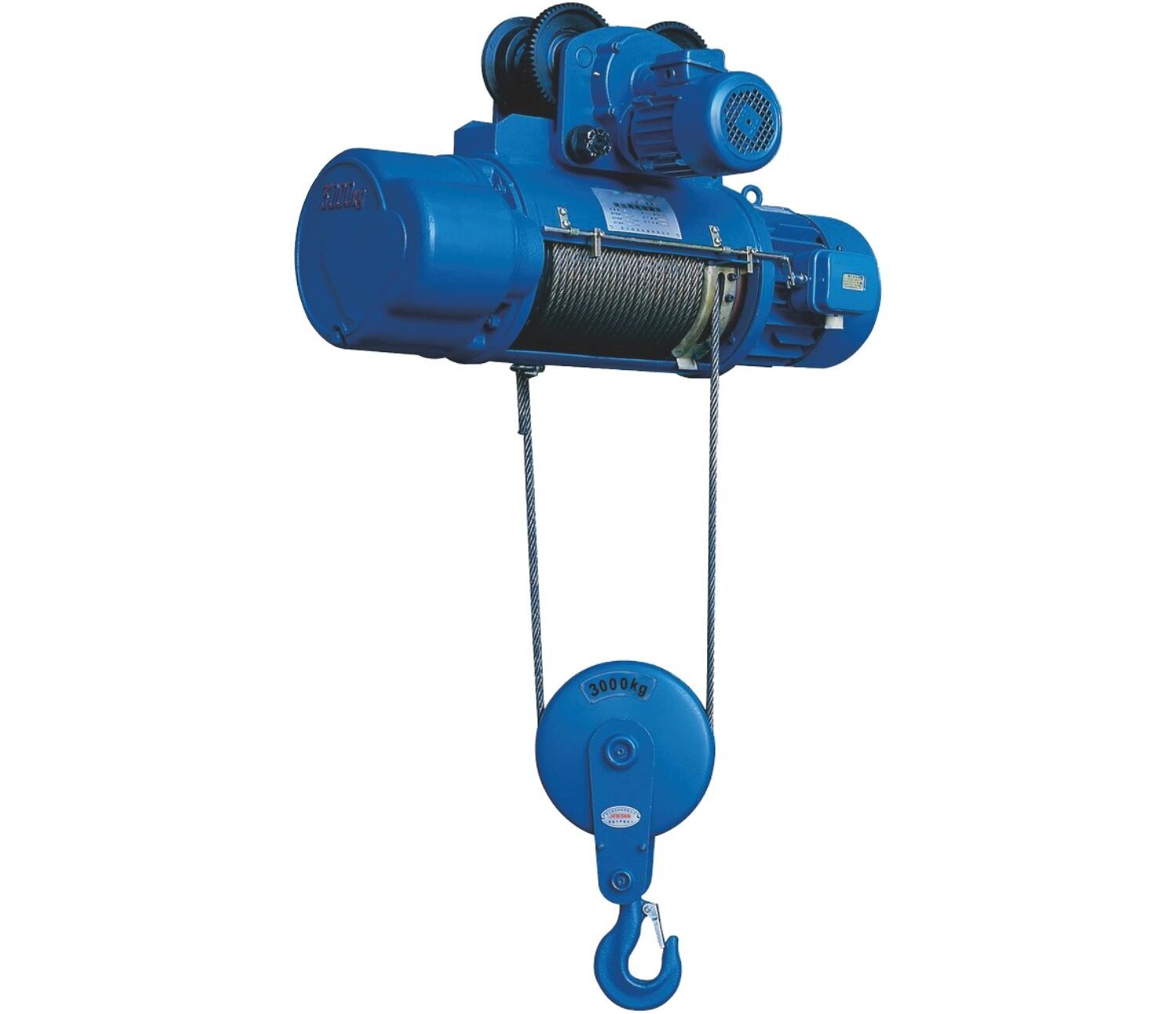

Electric rope-type electric CD 1 hoist – professional load handling device (telpher). Power supply – 380 V. Widely used for equipping beam, console and travelling gantry cranes. Advantages of CD telphers: high reliability, durability, high performance, operational versatility, moderate price in comparison with its analogs. Manufactured in two versions: fixed and movable. movable CD1 hoist is equipped with the trolley (sliding member) with electric drive which allows to secure it on the double T-section beam of the relevant number and to horizontally relocate the hoist and a cargo. The hoists with high drum rope capacity are complete with additional non-drive trolleys. The electric rope-type CD 1 hoists manufactured by TOR Industries comply with quality requirements of Directive 2006/42/EC on Machinery Factsheet for Machinery and have CE certificate.


Characteristics

Model
 Rated load, t
 Lifting height, m
 Lifting speed, m/s
 Operating voltage, V
 Lifting motor power, kw
  I-beam number, мм Weight, kg
CD 1 0,5 6 8 380 0,8 18М-30М 121
CD 1 0,5 12 8 380 0,8 18М-30М 130
CD 1 1 6 8 380 1,5 18М-30М 137
CD 1 1 9 8 380 1,5 18М-30М 150
CD 1 1 12 8 380 1,5 18М-30М 172
CD 1 1 18 8 380 1,5 18М-30М 188
CD 1 1 24 8 380 1,5 18М-30М 204
CD 1 1 30 8 380 1,5 18М-30М 220
CD 1 1 36 8 380 1,5 18М-30М 236
CD 1 2 6 8 380 3,0 24М-40М 221
CD 1 2 9 8 380 3,0 24М-40М 245
CD 1 2 12 8 380 3,0 24М-40М 285
CD 1 2 18 8 380 3,0 24М-40М 309
CD 1 2 24 8 380 3,0 24М-40М 332
CD 1 2 30 8 380 3,0 24М-40М 353
CD 1 2 36 8 380 3,0 24М-40М 374
CD 1 3,2 6 8 380 4,5 24М-40М 281
CD 1 3,2 9 8 380 4,5 24М-40М 312
CD 1 3,2 12 8 380 4,5 24М-40М 354
CD 1 3,2 18 8 380 4,5 24М-40М 390
CD 1 3,2 24 8 380 4,5 24М-40М 420
CD 1 3,2 30 8 380 4,5 24М-40М 451
CD 1 3,2 36 8 380 4,5 24М-40М 482
CD 1 5 6 8 380 7,5 36М-45М 472
CD 1 5 9 8 380 7,5 36М-45М 510
CD 1 5 12 8 380 7,5 36М-45М 597
CD 1 5 18 8 380 7,5 36М-45М 646
CD 1 5 24 8 380 7,5 36М-45М 686
CD 1 5 30 8 380 7,5 36М-45М 726
CD 1 5 36 8 380 7,5 36М-45М 766
CD 1 10 12 7 380 13,0 36М-45М 1098
CD 1 10 18 7 380 13,0 36М-45М 1209
CD 1 10 24 7 380 13,0 36М-45М 1263
CD 1 10 30 7 380 13,0 36М-45М 1317
CD 1 10 36 7 380 13,0 36М-45М 1380
CD 1 16 12 3,5 380 13,0 45М 1492
CD 1 16 18 3,5 380 13,0 45М 1598
CD 1 16 24 3,5 380 13,0 45М 1650
CD 1 16 30 3,5 380 13,0 45М 1750
CD 1 20 12 3,3 380 13,0 45М 1550
CD 1 20 18 3,3 380 13,0 45М 1660
CD 1 20 24 3,3 380 13,0 45М 1770
CD 1 20 30 3,3 380 13,0 45М 1880
