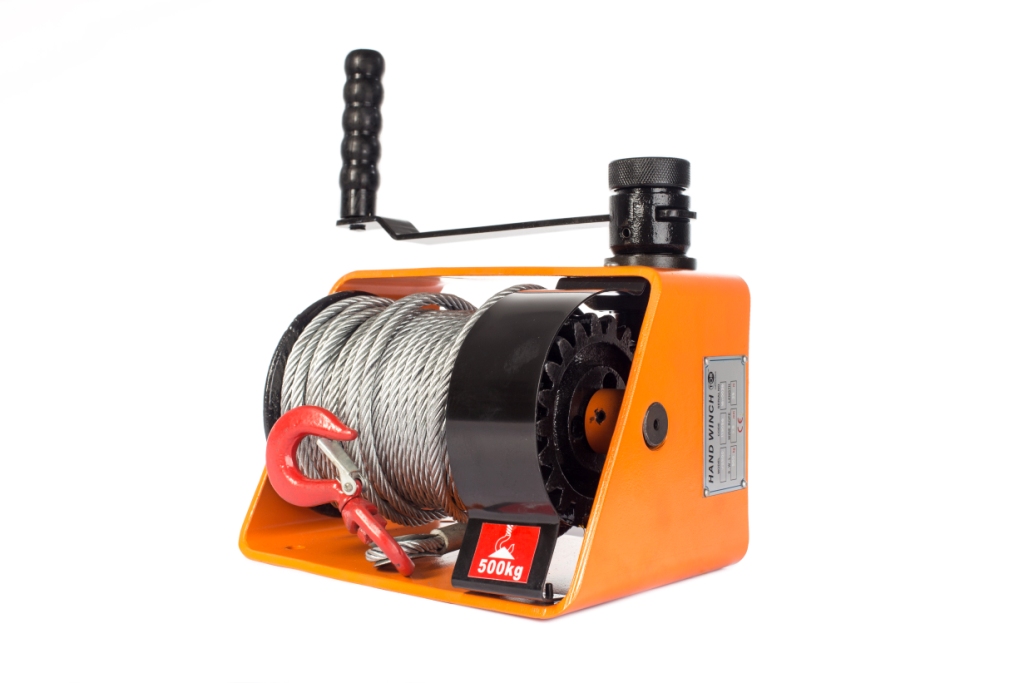

Manual drum-type VS winch

Manual drum-type VS winch is a powerful industrial winch with worm gear. The worm gear advantage compared to gear reducer is its higher reliability and simplicity, ability to work in the most extreme conditions.Advantages: the worm gear has high-quality components and their workmanship, high reliability and performance, rope drum capacity up to 35 m, equipped with automatic stopping mechanism.Recommended for use in industrial facilities with harsh operational conditions. Manual drum-type VS winches manufactured by TOR Industries comply with quality requirements of Directive 2006/42/EC on Machinery Factsheet for Machinery and have CE certificate.


Characteristics

Model
Rated load, t
Rope length, m
Rope diameter, mm
Transmission type
Rope completing
Weight, kg
VS 0,25 20 5,0  worm No 10
VS 0,5 25 6,8  worm No 16
VS 1,0 35 9,0  worm No 40
