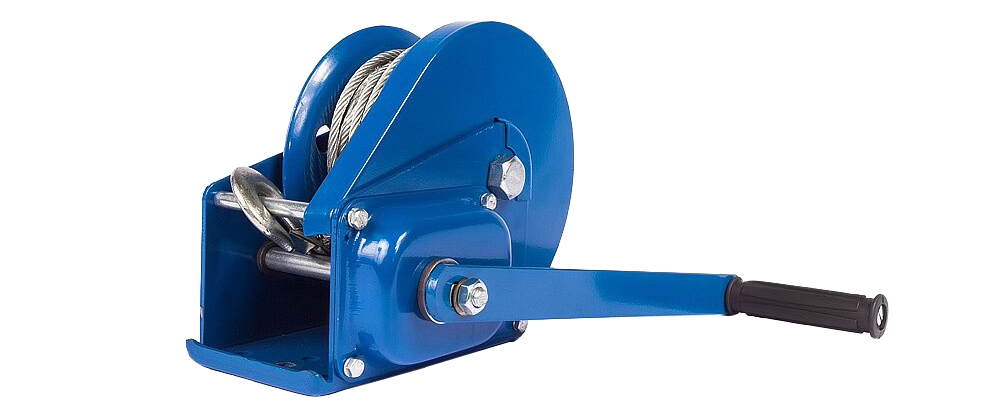

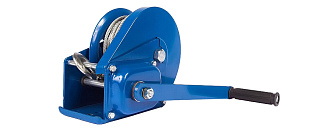

Manual drum-type BHW winch

Manual drum-type BHW winch is a reliable, not expensive and multipurpose winch for industrial applications. Design features – the gearbox small gears are covered with protective housing to prevent the gears soiling and preserve the grease applied, which in its turn, promotes durability and fault-free operation. Advantages: equipped with a stopping mechanism, the reduction gear is covered with protective housing, small dimensions and weight, high-quality materials, excellent workmanship, moderate price, originally equipped with a rope. Recommended for use in industrial facilities with low and middle intensity of operation. Manual drum-type BHW winch manufactured by TOR Industries complies with quality requirements of Directive 2006/42/EC on Machinery Factsheet for Machinery and has CE certificate.


Characteristics

Model
Rated load, t Rope length, m
Rope diameter, mm
Transmission type
Rope completing
Weight, kg
BHW 0,5 10 4 gear
Yes 4,50
BHW 0,5 20 4 gear Yes
4,75
BHW 1,0 10 5 gear
Yes
8,50
BHW 1,0 20 5 gear
Yes
9,00
BHW 1,35 10 6 gear
Yes
10,00
BHW 1,35 20 6 gear
Yes
10,75
