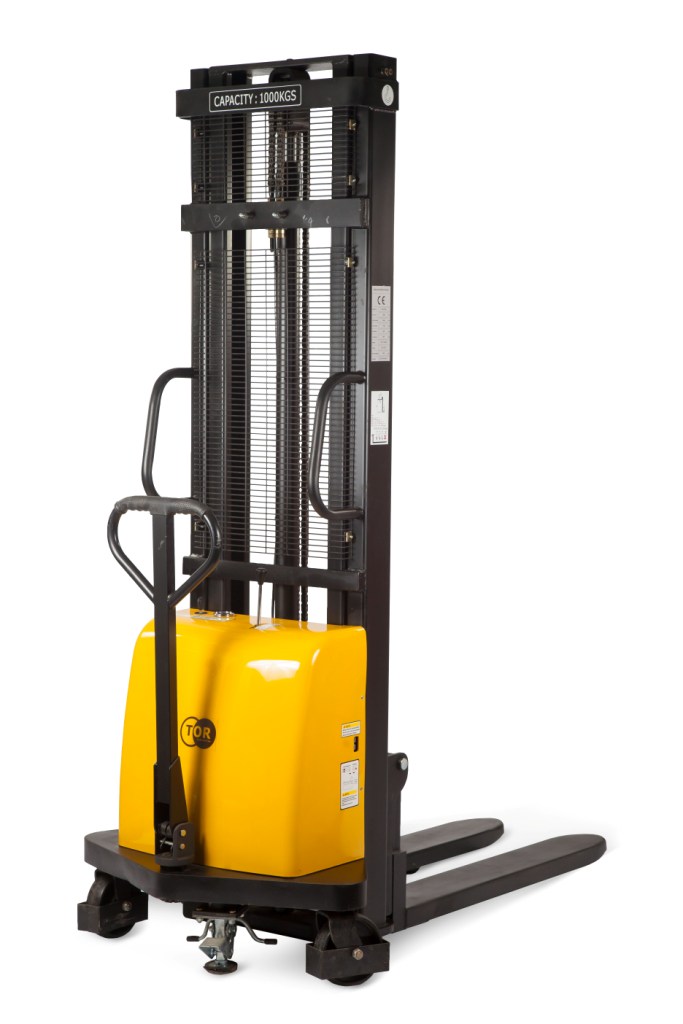

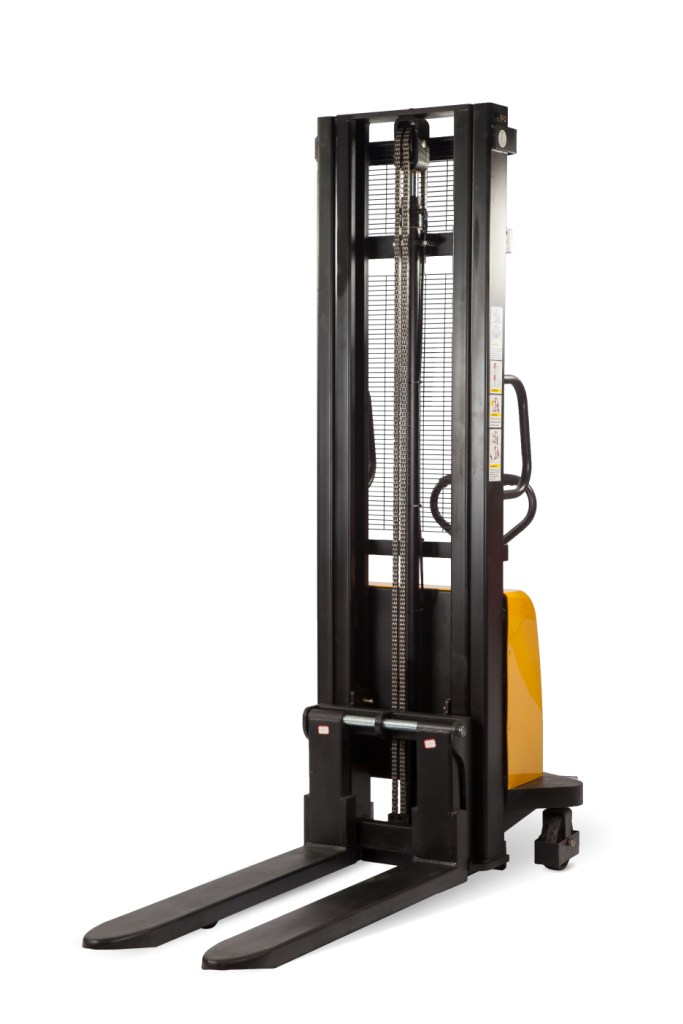

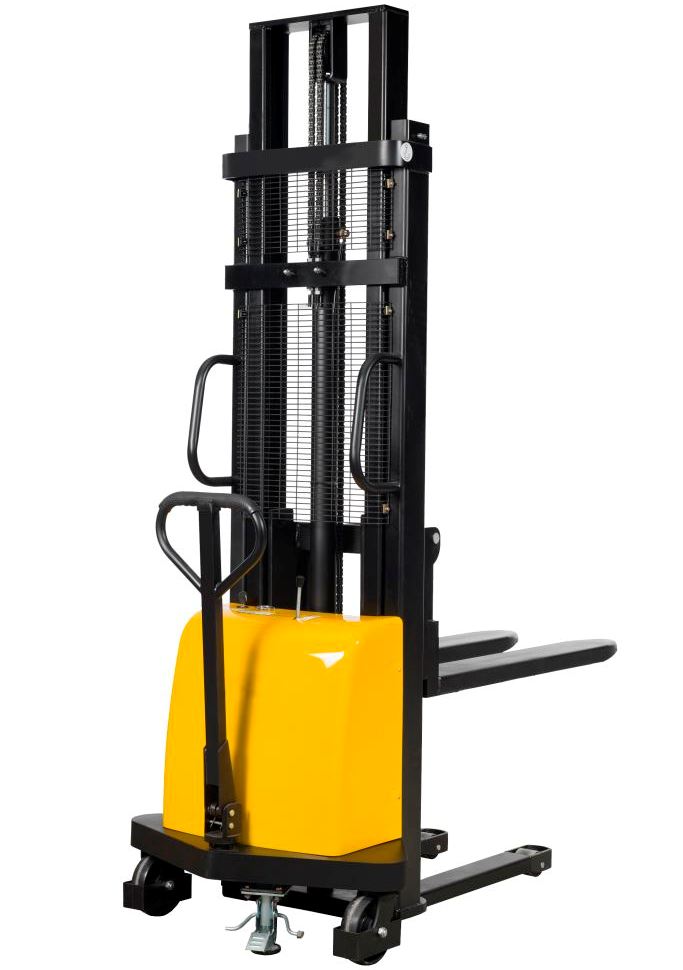

Modern hydraulic stacker. Lifting/lowering is carried out by means of electrical compressor. It is considerably accelerating the processing of loads. Horizontal movement is carried out in manual mode. Control of lifting/lowering is carried out by means of the lever at the unit. It is recommended for warehouses with average intensity of works. Depending on modification (height of lifting) it can be equipped with masts with one or two sections.

  Characteristics:
  • Electric drive for lifting and lowering;
  • Traction battery, 12V-120Ah;
  • 8 hours of operations;
  • Built-in charger; controls at the unit.

Characteristics

Rated load, t
 Pick-up height, mm
 Lifting height, mm
 Fork length, mm
 Fork width, mm  Weight, kg
 Turning radius, mm
 Aisle width, mm
 Battery
1,0 85 1600/2000/2500/
3000/3500 		1150 540 285/345/365/
385/405 		1326 800 12v - 120Ah
1,5 85 1600/2000/2500/3000 1150 540 310/370/390/410/430 1326 800 12v - 120Ah
2,0 85 1600/2000/2500 1150 540 335/395/415 1326 800 12v - 120Ah
