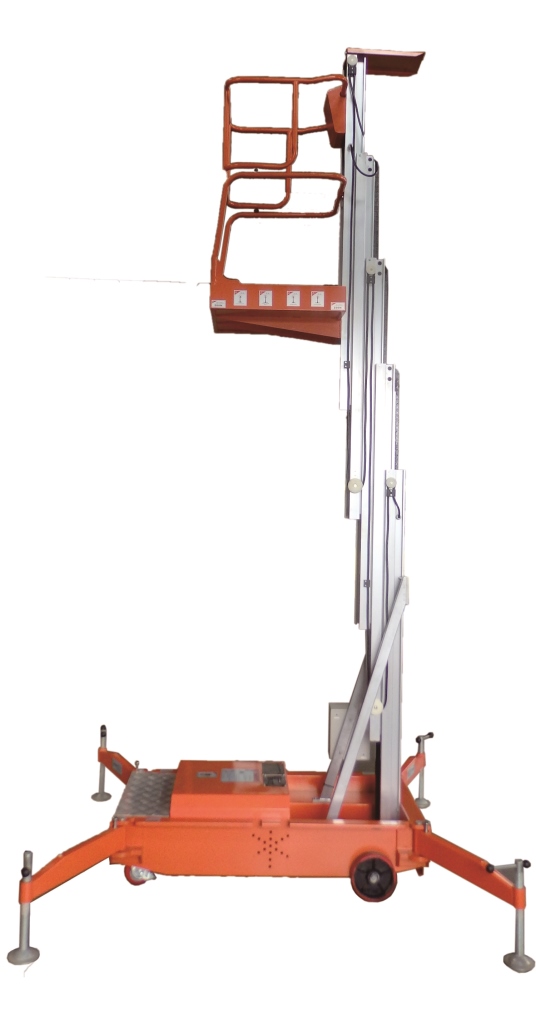

Telescopic electric hoist is equipped with masts made of aluminum alloy. Use of strong and light alloys reduces the own body weight of the structure that positively affects the mobility of hoist and allows to use the electric motor with smaller electricity consumption and with connection to the 220V network. This type of hoist, depending on modification, allows to lift loads of up to 300 kg and to heights up to 16 m. Depending on modification they can have from one to four masts.

Characteristics:

mast material - aluminum alloy;
feed - 220V;
loading capacity - up to 300 kg;
height of lifting - up to 16 m;
various modifications.

Characteristics

Lifting height, m	Rated load, kg	Number of masts, pc	Platform, m	Engine power, kw	Feed, V	Weight, kg	Dimensions, m
4,0	150	1	0,63х0,64	0,75	220	385	1,42x0,84x1,92
6,0	150	1	0,63х0,64	0,75	220	415	1,42x0,84x1,92
8,0	150	1	0,63х0,64	0,75	220	450	1,42x0,84x1,92
9,0	125	1	0,63х0,64	0,75	220	490	1,42x0,84x1,92
10,0	125	1	0,63х0,64	0,75	220	490	1,42x0,84x1,92
6,0	300	2	1,23x0,61	1,6	220	530	1,54x0,82x1,82
8,0	300	2	1,23x0,61	1,6	220	570	1,54x0,82x1,82
9,0	250	2	1,38x0,61	1,6	220	728	1,80x0,86x1,85
10,0	250	2	1,38x0,61	1,6	220	728	1,80x0,86x1,85
12,0	200	2	1,38x0,61	1,6	220	825	1,80x0,86x2,10
12,0	250	3	1,53x0,88	1,5	220	960	1,78x1,10x2,32
14,0	250	3	1,53x0,88	1,5	220	980	1,90x1,10x2,32
15,0	250	3	1,53x0,88	1,5	220	1065	2,00x1,25x2,68
14,0	250	4	1,40x0,88	1,5	220	1360	1,90x1,10x2,52
16,0	250	4	1,45x0,90	1,5	220	1520	2,28x1,35x2,82
