Lifting tables with single shears

Lifting tables with single shears

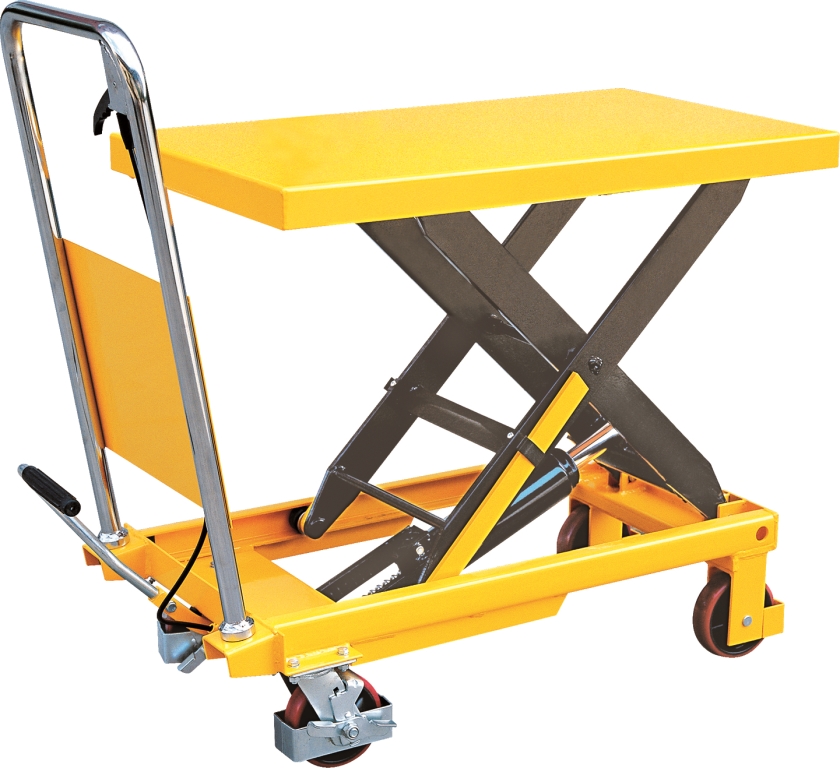

Lifting tables with single shears - non-expensive, reliable lifting equipment allowing to move and lift loads up to the level of rack, ramp, car body, etc. TOR Idustries company offers a wide range of models for this type of equipment

Characteristics

Model
 Rated load, t
 Pick-up height, mm
 Lifting height, mm
 Platform, mm
 Diameter of wheels, mm
 Weight, kg
PT150 0,15 210 720 815х500х50 125 76
WP 300 0,30 340 900 855x500x50 127 85
WP 500 0,50 340 900 855x500x50 127 88
WP 750 0,75 420 1000 1000x510x55 150 112
WP 800 0,80 420 1000 1000x510x55 150 112
WP 1000 1,00 420 1000 1000x510x55 150 112
SP 500 0,50 340 900 855x500x50 127 87
SP 1000 1,00 380 1000 1016x515x60 150 115
SP 1500 1,50 420 1000 1220x610x60 150 135
PTD1000 1,00 380 1000 1200х610х80 150 165
PTD1500 1,50 380 1000 1200х610х80 150 180
PTD2000 2,00 380 1000 1200х610х80 150 190
