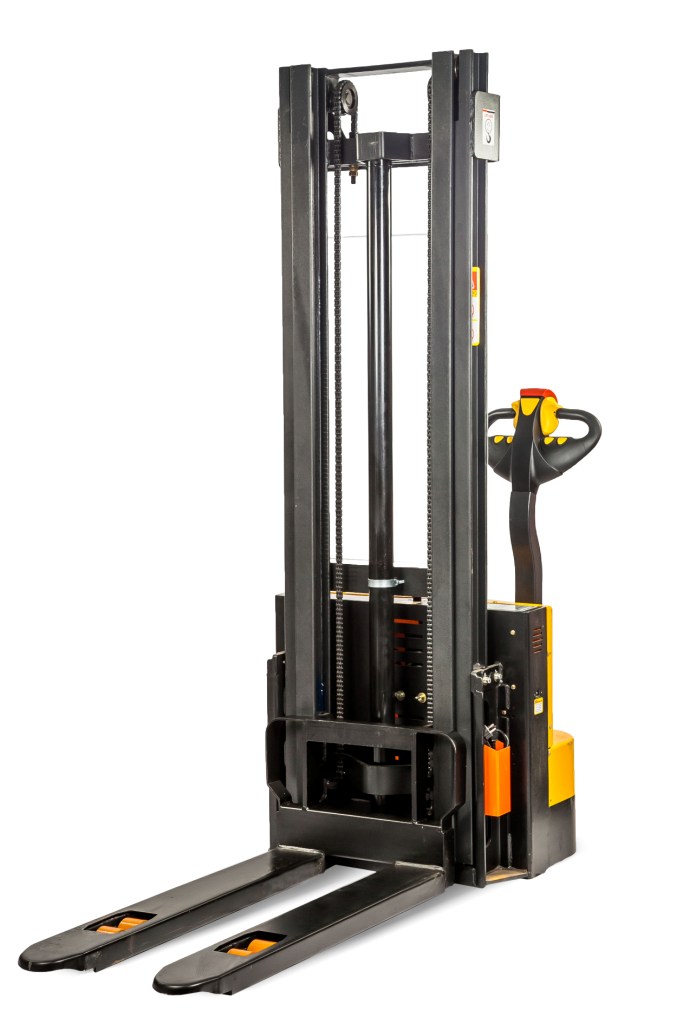

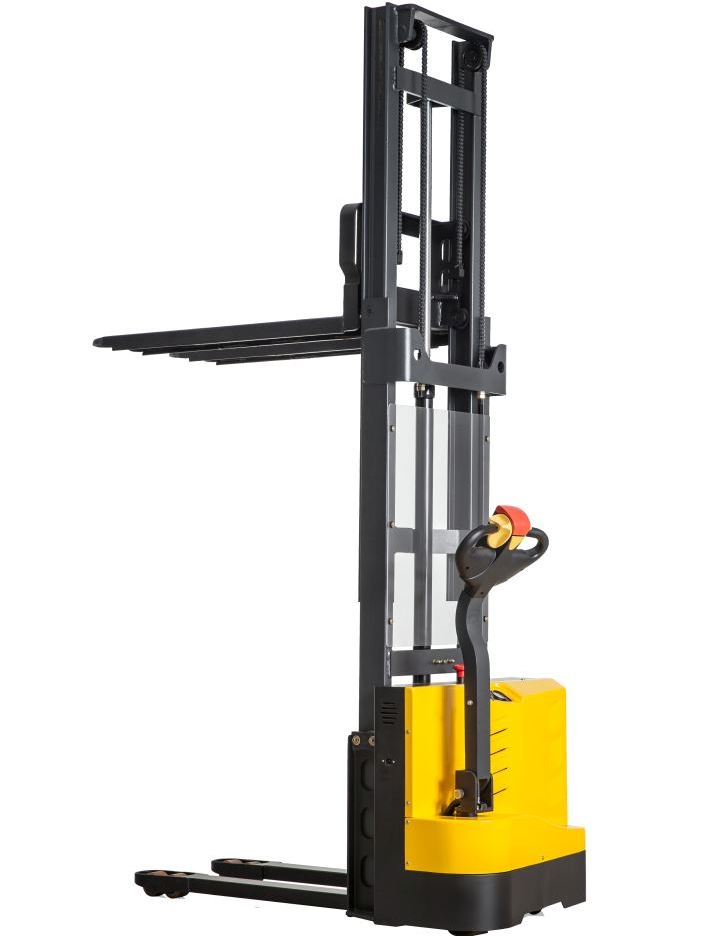

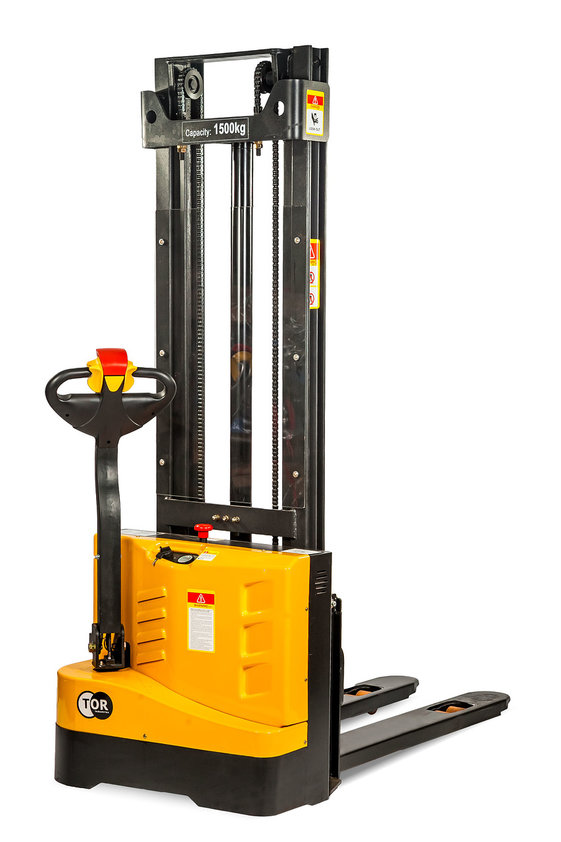

Completely electrified modern model of stacker. Lifting and moving is carried out without appication of physical efforts from the operator. The quickest and the most comfortable processing of loads. It is effective for use at warehouses with any intensity of loads turnover. Traction battery for 8 hours of operations. Control by means of buttons and levers at the control handle. Depending on modification (height of lifting) it can be equipped with masts with one or two sections.

Characteristics:

self-propelled;
self-lifting;
traction battery, 12V-75Ahx2;
8 hours of operations;

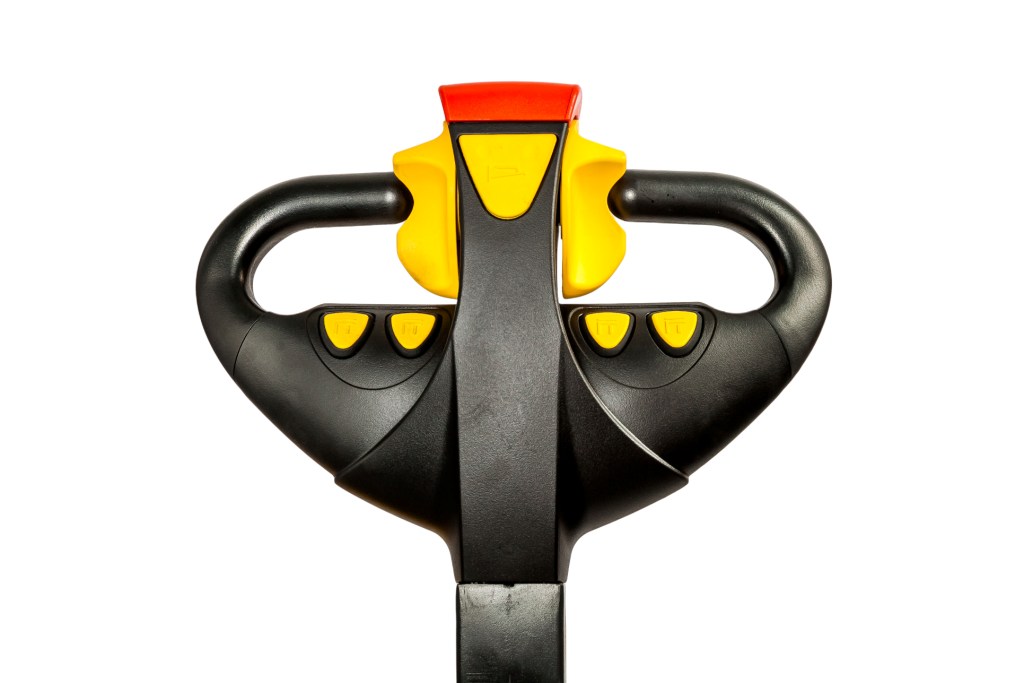

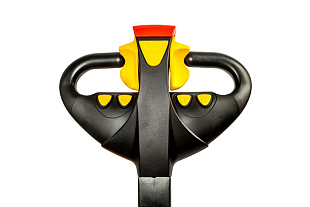

control at the handle;
built-in charger;
additional driving wheel.

Characteristics

Rated load, t	Pick-up height, mm	Lifting height, mm	Fork length, mm	Fork width, mm	Weight, kg	Turning radius, mm	Aisle width, mm	Battery
1	90	1600/2500/3000/ 3300/3500	1150	560	500/550/570/ 600/630	1500	800	12v-75Ah х 2 pcs.
1,2	90	1600/2000/2500/ 3000/3300/3500	1150	560	500/550/570/ 600/630	1500	800	12v-75Ahх 2 pcs.
1,5	90	1600/2000/2500/ 3000/3300/3500	1150	560	500/550/570/ 600/630	1500	800	12v-75Ah х 2 pcs.
