Oval-shaped link with additional rings
The oval-shaped link with additional rings (links) has a 4th safety margin for tearing (8th strength class). It is used in the production of multi-legged chain slings as an upper end element. The use of components of the 8th strength class produced by TOR Industries Company allows reducing the weight of the chain sling while maintaining the rated parameters of reliability.

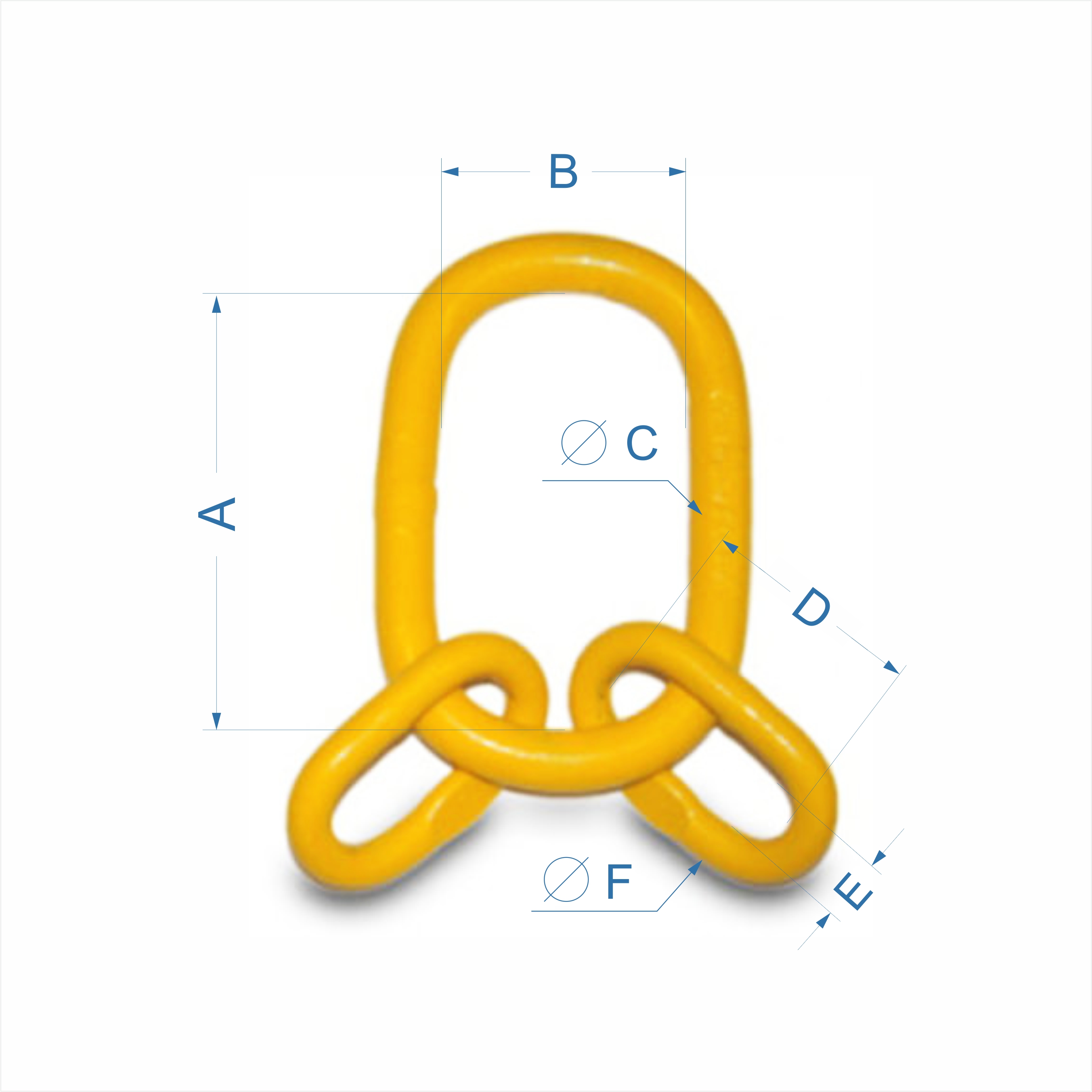

| Rated load, t | Tear strength, t | Chain, mm | A, mm | B, mm | C, mm | D, mm | E, mm | F, mm | Weight, kg |
| 2,36 | 9,4 | 6 | 135,0 | 75,0 | 18,0 | 54,0 | 25,0 | 13,0 | 1,18 |
| 3,15 | 12,6 | 7 | 135,0 | 75,0 | 18,0 | 60,0 | 38,0 | 13,0 | 1,24 |
| 4,25 | 17,0 | 8 | 160,0 | 90,0 | 22,0 | 70,0 | 34,0 | 16,0 | 2,20 |
| 6,7 | 26,8 | 10 | 180,0 | 100,0 | 26,0 | 85,0 | 40,0 | 18,0 | 3,40 |
| 11,2 | 44,8 | 13 | 200,0 | 110,0 | 32,0 | 115,0 | 50,0 | 22,0 | 5,10 |
| 17,0 | 68,0 | 16 | 260,0 | 140,0 | 36,0 | 140,0 | 65,0 | 26,0 | 9,98 |
| 21,2 | 84,8 | 18 | 340,0 | 180,0 | 45,0 | 180,0 | 100,0 | 32,0 | 18,90 |
| 26,5 | 106,0 | 20 | 350,0 | 190,0 | 50,0 | 180,0 | 100,0 | 32,0 | 22,60 |
| 31,5 | 126,0 | 22 | 350,0 | 190,0 | 50,0 | 180,0 | 100,0 | 36,0 | 25,20 |
| 45,0 | 180,0 | 26 | 400,0 | 200,0 | 56,0 | 200,0 | 110,0 | 40,0 | 34,26 |
| 50,0 | 200,0 | 28 | 430,0 | 220,0 | 63,0 | 200,0 | 110,0 | 45,0 | 47,11 |
| 63,0 | 252,0 | 32 | 460,0 | 250,0 | 72,0 | 200,0 | 110,0 | 50,0 | 66,46 |
