Connecting link

Connecting link is used in the production of chain slings for hanging the end elements on the chain (oval-shaped end links, hooks) that don't have a jaw system for fastening. It has a 4th safety margin for tearing (8th strength class). Using components of the 8th strength class produced by TOR Industries Company allows reducing the weight of the chain sling while maintaining the rated reliability parameters.


Characteristics

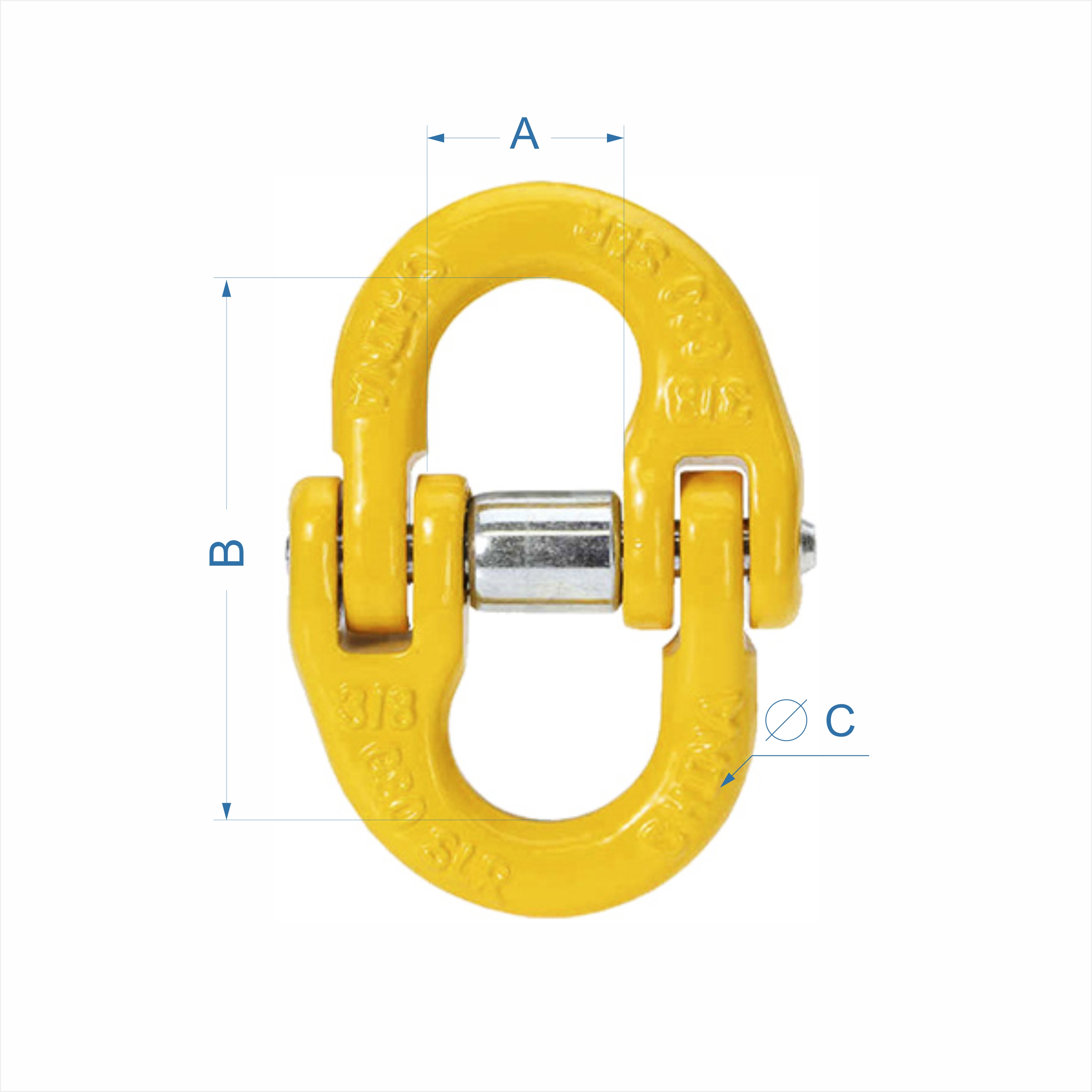

Rated load, t Tear strength, t Chain, mm A, mm   B, mm C, mm Weight, kg
1,12 4,5 6 16,2 42,0 7,0 0,08
2,00 8,0 7-8 20,5 58,0 8,5 0,15
3,15 12,6 10 28,0 68,0 10,8 0,30
5,3 21,2 13 30,0 90,0 15,0 0,70
8,0 32,0 16 36,3 101,2 19,8 1,10
12,5 50,0 20 44,0 117,6 24,0 1,84
15,0 60,0 22 51,0 136,7 26,0 3,20
21,2 84,8 26 58,0 161,0 30,0 4,50
31,6 126,4 32 67,5 197,0 37,0 9,00
