Hook with wide mouth

Steel hook with wide mouth is used in the manufacture of slings (hoist cables) and load-handling devices, as well as when carrying out towing and rigging operations as an end element. It is used at operations with a non-standard load, when the application of a standard hook is not possible. Characteristics: 4x safety margin for tearing (8th strength class), has a fixed eyelet, the lock is not available. Using components of the 8th strength class produced by TOR Industries Company makes it possible to reduce the weight of the sling while maintaining the rated reliability parameters.

Characteristics

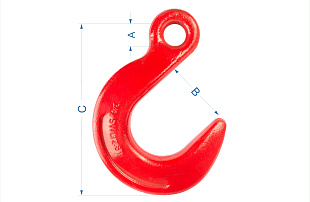

Rated load, t Tear strength, t Chain, mm A, mm B, mm C, mm Weight, kg
2,0 8,0 8 18,0 63,5 163,0 1,09
3,15 12,6 10 22,0 76,0 200,0 2,02
5,3 21,2 13 27,0 89,0 238,0 3,22
8,0 32,0 16 32,0 102,0 278,0 5,53
12,5 50,0 20 38,0 114,5 325,0 8,75
15,0 60,0 22 45,0 127,5 361,0 11,93
21,2 84,8 26 67,5 140,0 402,0 16,80
31,5 126,0 32 81,5 153,5 461,0 26,60
