Cable bush DIN3093
Cable bush is made of aluminum alloy. Used when making wire rope strings with whiping the rope ends using the pressure moulding method. Application of aluminum bushes manufactured by TOR industries allows achieving high quality bonding. When choosing the bush for crimping, it is necessary to take into account the cable structure, its diameter, type of cable core, cable material, temperature of sling use.

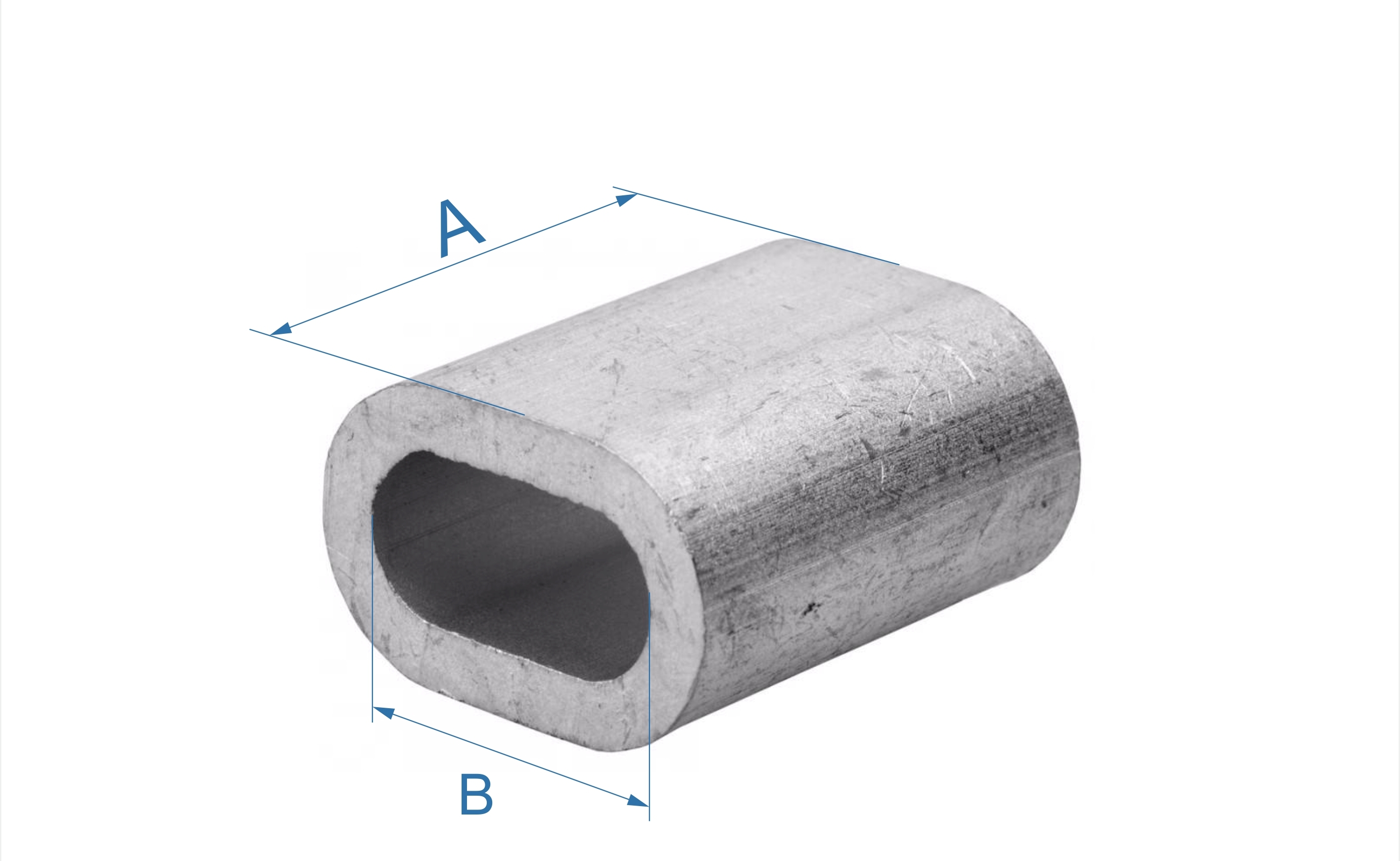

| Rope diameter, mm | A, mm | B, mm | Weight, kg |
| 6,0 | 21,0 | 13,2 | 0,05 |
| 8,0 | 28,0 | 17,6 | 0,06 |
| 9,0 | 32,0 | 19,8 | 0,07 |
| 10,0 | 35,0 | 21,8 | 0,08 |
| 11,0 | 39,0 | 24,2 | 0,09 |
| 12,0 | 42,0 | 26,4 | 0,10 |
| 14,0 | 49,0 | 30,6 | 0,20 |
| 16,0 | 56,0 | 35,0 | 0,30 |
| 18,0 | 63,0 | 39,2 | 0,40 |
| 20,0 | 70,0 | 43,4 | 0,43 |
| 22,0 | 77,0 | 48,6 | 0,46 |
| 24,0 | 84,0 | 52,8 | 0,50 |
| 26,0 | 91,0 | 57,0 | 0,60 |
| 28,0 | 98,0 | 62,0 | 0,90 |
| 30,0 | 105,0 | 66,2 | 1,10 |
| 32,0 | 112,0 | 70,4 | 1,30 |
| 34,0 | 119,0 | 75,6 | 1,70 |
| 36,0 | 126,0 | 79,6 | 1,75 |
| 38,0 | 133,0 | 83,8 | 1,80 |
| 40,0 | 140,0 | 88,0 | 1,84 |
| 42,0 | 147,0 | 92,4 | 2,00 |
| 44,0 | 154,0 | 96,8 | 2,30 |
