Tractional mounting mechanism ZNL

Tractional mounting mechanism ZNL

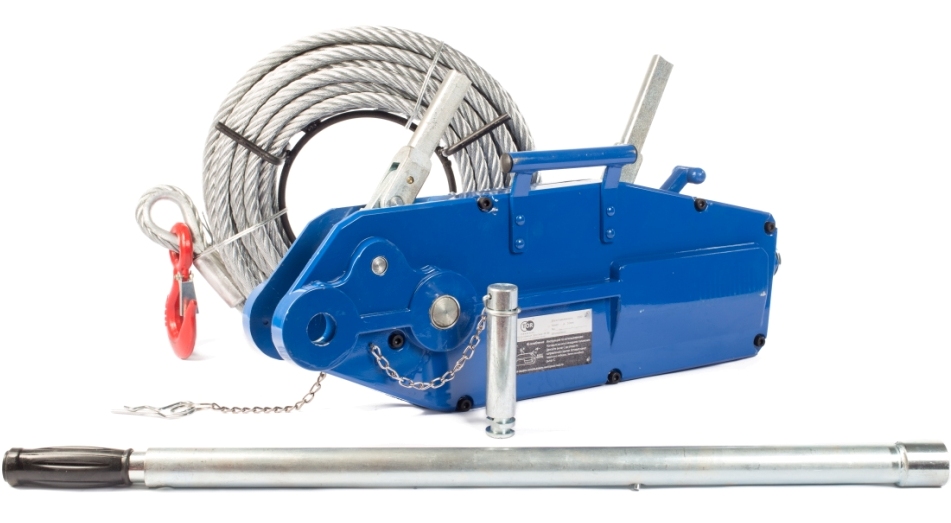

ZNL manufactured by TOR Industries is a reliable multipurpose tractional mounting mechanism. Designed for a wide range of applications related to horizontal and vertical cargo handling. Advantages: does not require a mounting surface, high workmanship quality, quality steel, moderate price, originally equipped with a rope up to 20m (the rope length can be increased). TOR industries recommends ZNL for industrial and construction applications. Tractional mounting mechanism ZNL manufactured by TOR Industries complies with quality requirements of Directive 2006/42/EC on Machinery Factsheet for Machinery and has CE certificate.

Characteristics

Model
 Rated load, t
 Rope length, m
 Rope diameter, mm Force on the lever, kg
 Rope completing
 Weight, kg
ZNL 0,8 20 8,3 34 Yes
 16,1
ZNL 1,6 12/20 11,0 44 Yes
 25,0/27,1
ZNL 3,2 12/20 16,0 44 Yes 45,0/48,6
ZNL 5,4 20 20,0 74 Yes
 94,3
