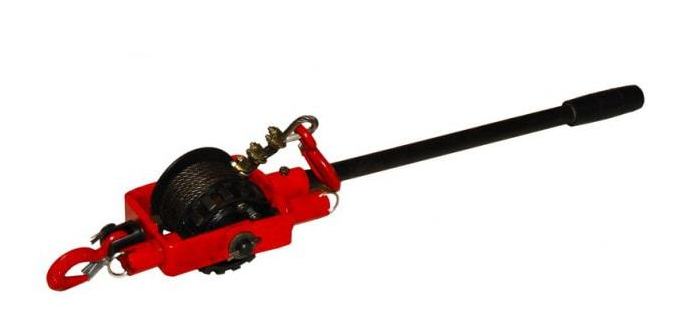

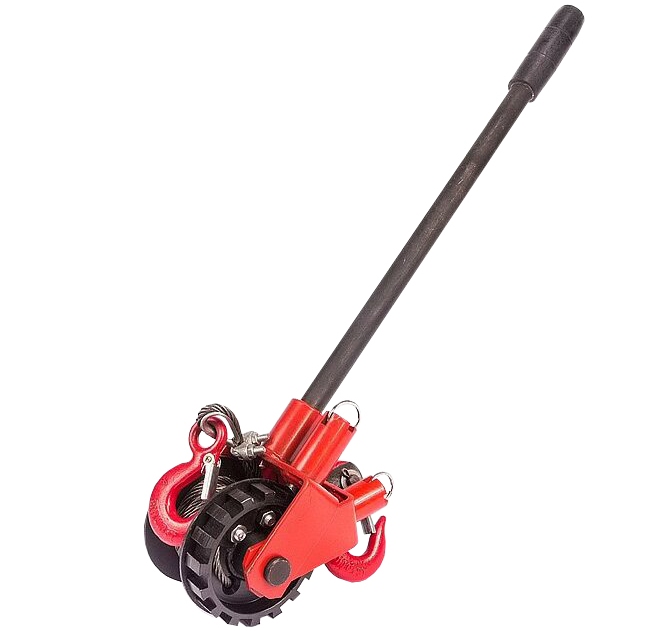

LR cable puller

LR cable puller is simple, reliable and not very expensive. Advantages: does not require a mounting surface, small dimensions and weight, good workmanship, quality steel, moderate price, originally equipped with a rope.Recommended for use both in household and industrial facilities with low and middle intensity of operation. LR cable puller manufactured by TOR Industries complies with quality requirements of Directive 2006/42/EC on Machinery Factsheet for Machinery and has CE certificate.

Characteristics

Model
Rated load, t
Rope length, m
Rope diameter, mm
Force on the lever, kg
Rope completing
Weight, kg
LR 0,63 3 5,6 27 Yes
7,0
LR 0,63 6 5,6 27 Yes
7,5
LR 0,63 9 5,6 27 Yes
8,0
LR 1.6 3 8,3 37 Yes
12,0
LR 1,6 6 8,3 37 Yes
13,0
LR 1,6 9 8,3 37 Yes
14,0
