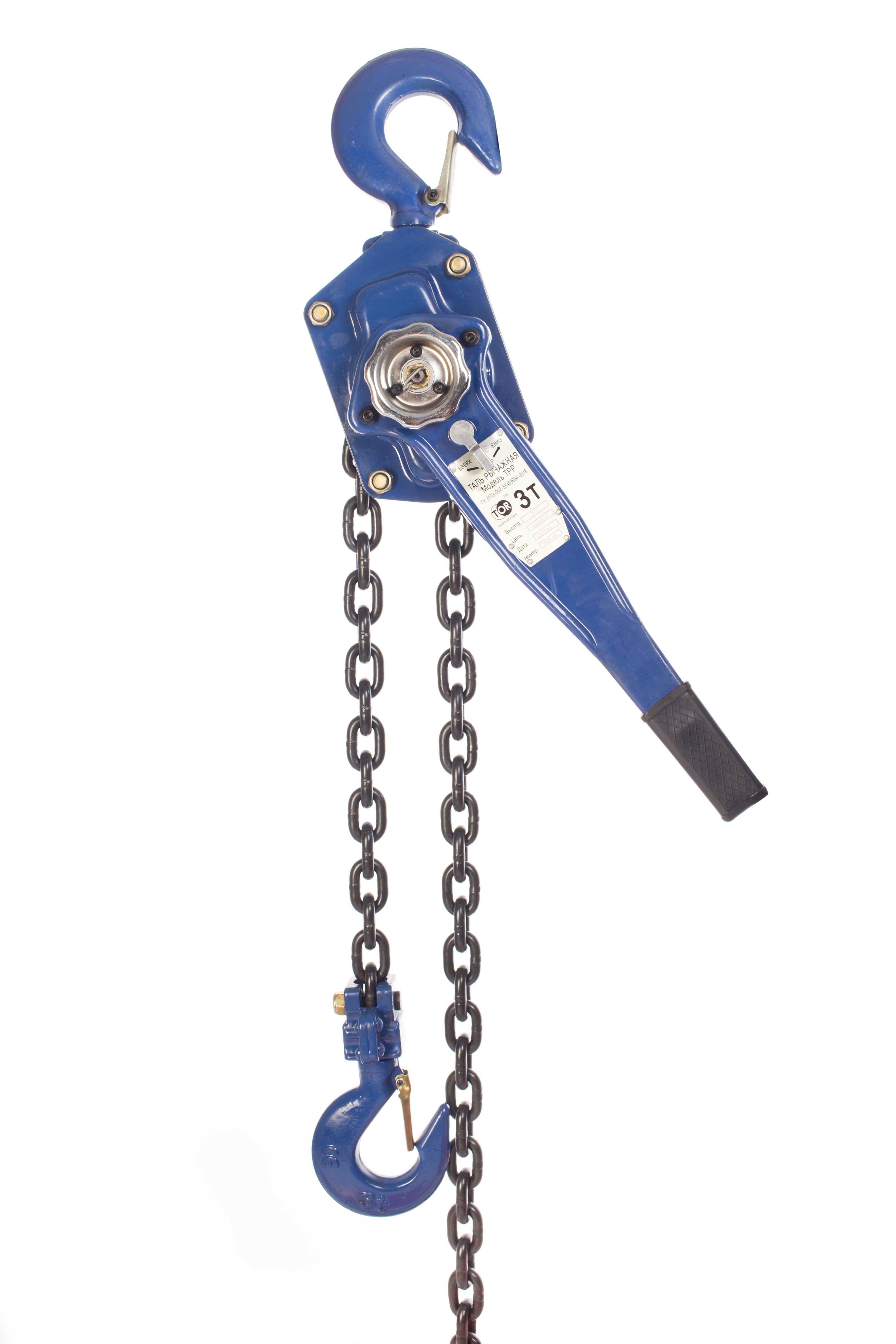

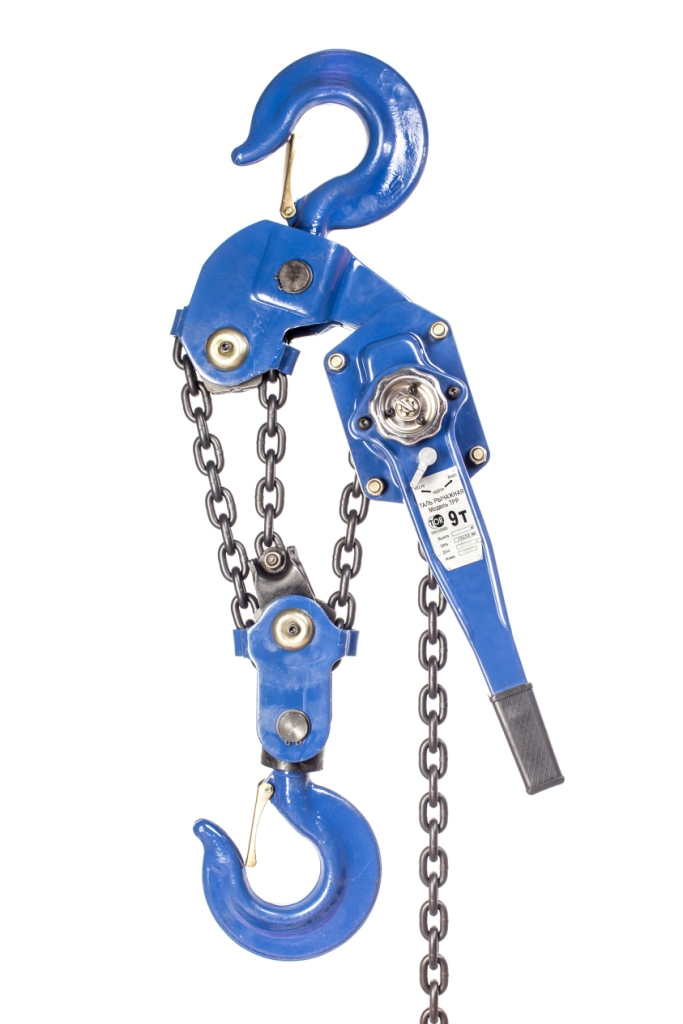

HSH Lever hand hoist

HSH Lever hand hoist

The hand lever HSC hoists manufactured by TOR Industries are characterized by the best price-quality ratio in the European Union market. They combine high reliability (4:1 strength factor), durability (7 years service life) and a moderate price. The hand HSC tackle fully complies with quality requirements of Directive 2006/42/EC on Machinery Factsheet for Machinery and has CE certificate.

Characteristics


Rated load, t
 0,5 0,75 1 1,5 2 3 6 9
Chain length, m
  3-12  3-12  3-12  3-12  3-12  3-12  3-12  3-12
Load chain, mm
 6х18 6х18 6х18 8Х24 8Х24 10х29 10х30 10х30
Lifting effort (max), Н
 130 148 180 200 216 336 345 370
Pulley block multiplicity
 1 1 1 1 1 1 2 3
Weight (chain 1,5 m), kg 9 9 9 11,5 12,6 22 37 47
Add.weight for 1 m chain length, kg 0,9 0,9 0,9 1,6 1,6 2,4 4,8 5,6
