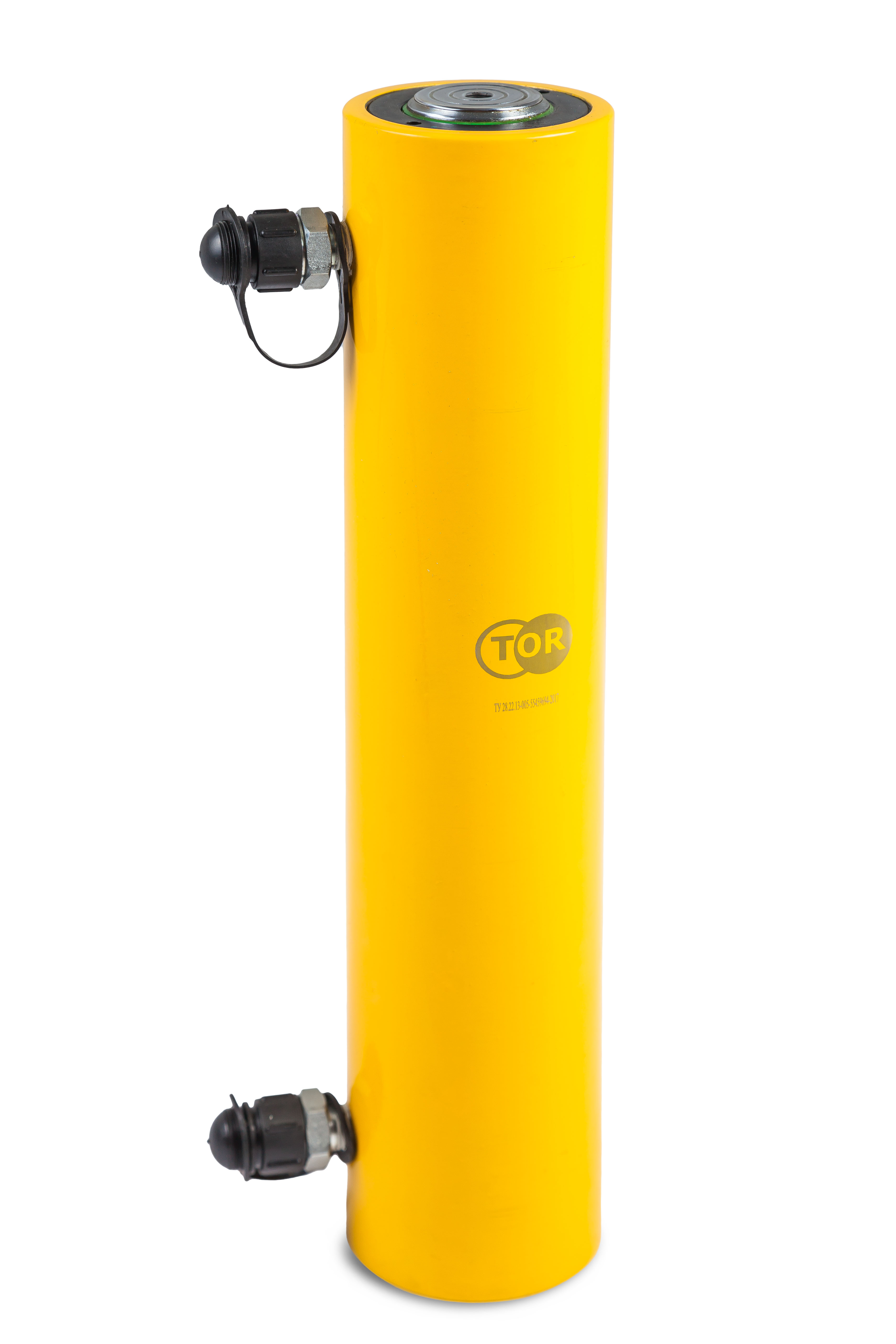

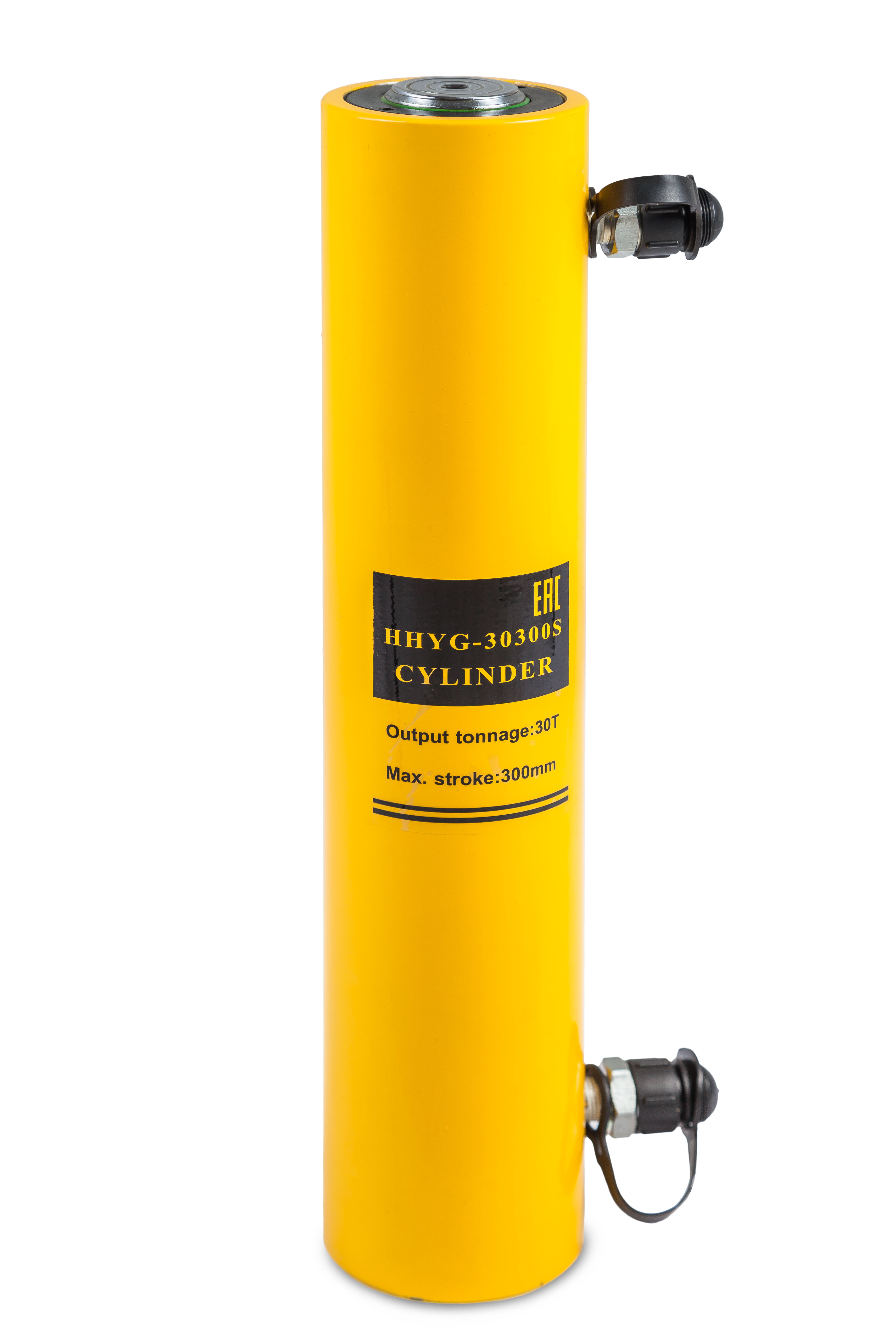

Hydraulic bidirectional HHYG-S jack

Hydraulic bidirectional HHYG-S jack

Hydraulic HHYG-S jacks are multipurpose, powerful, reliable and high-performance hydraulic bidirectional jacks with carrying capacity up to 1000 tons. Their distinct feature is in that the hydraulic return of the rod ensures fast and safe cargo lowering which enables not only cargo lifting but its controlled lowering. Designed for operation in industrial facilities and construction sites. To ensure operation convenience and safety fluid supply from an external source is used. Both a hand pump, or a pump with an electric drive can be used as a fluid blower. Recommended for operation in facilities with any operations intensity. Advantages: bidirectional action (lifting-lowering), high reliability and performance, removable pump (manual or electrical), hydraulic return of the rod, high accuracy of cargo positioning. Hydraulic HHYG-S jack manufactured by TOR Industries complies with quality requirements of Directive 2006/42/EC on Machinery Factsheet for Machinery and has CE certificate.


Characteristics


Item Load-carrying capacity, t  Pick-up height, mm Stroke, mm Weight, kg
1004582 10 380 250 10
1004583 10 430 300 11
105202 20 390 250 13
1004584 20 440 300 15
1004585 30 364 200 17
1004586 30 464 300 21
105502 50 374 200 29
1004587 50 474 300 35
1051002 100 389 200 60
1004588 100 489 300 73
1004589 200 217 50 63
1052002 200 317 150 84
1004590 200 467 300 146
1004591 250 261 50 102
1004592 250 361 150 135
1004593 250 511 300 184
1004594 300 280 50 133
1004595 300 380 150 173
1004596 300 530 300 231
1004597 400 341 50 211
1004598 400 441 150 262
1004599 400 591 300 336
1004600 500 376 50 309
1004601 500 476 150 360
1004602 500 626 300 460
1004603 600 397 50 381
1004604 600 497 150 458
1004606 600 547 300 575
1004607 800 438 50 583
1004608 800 538 150 681
1004609 800 688 300 850
1004610 1000 493 50 830
1004611 1000 593 150 970
1004612 1000 743 300 1177
