The Suspension end beam

The Suspension end beam

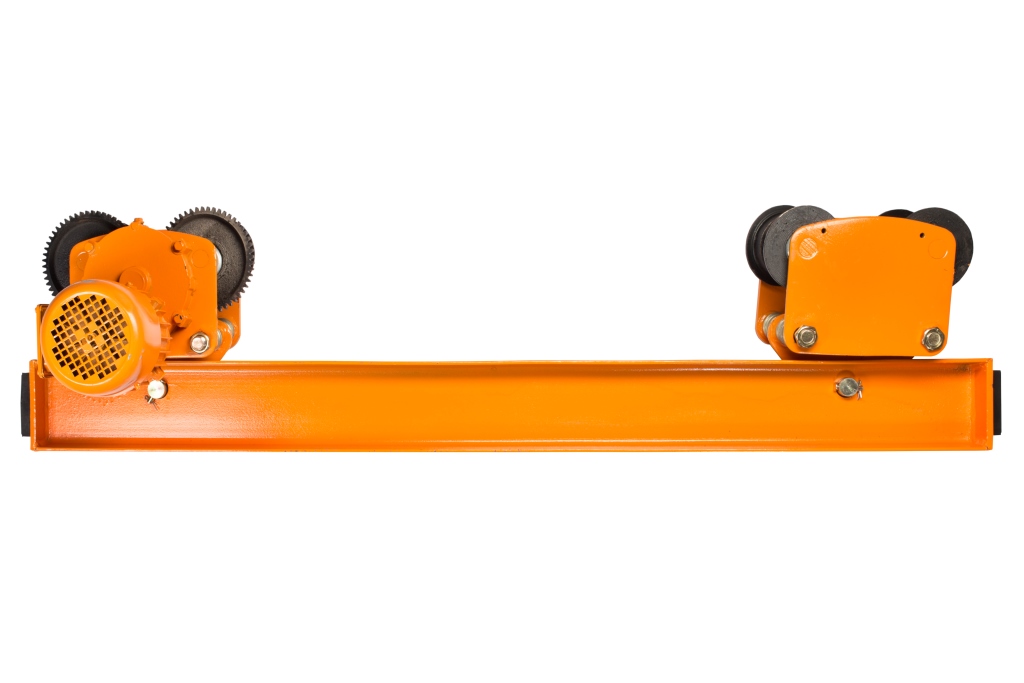

The Suspension end beam is an element of the beam crane, and is secured at the ends of the crane (longitudinal) beam ensuring movement of the crane (longitudinal) beam along the double T-section of the relevant number. The Suspension end beams of TOR Industries manufacture are referred to a multipurpose type, that is, they do not have a specific fastening for a specific size and configuration of the crane (longitudinal) beam. Carrying capacity of the end beam which is necessary for the crane rigging is calculated by a design organization proceeding from the crane scheduled carrying capacity and the weight of the entire structure together with the telpher. The household electric tackles manufactured by TOR Industries comply with quality requirements of Directive 2006/42/EC on Machinery Factsheet for Machinery and have CE certificate.

Characteristics

Model	Rated load, t	Length, m	I-beam width, mm	Lifting motor power, kw	Movement speed, m/min	Space between beams , m	Presence of bumpers	Set weight, kg
Suspension	1	1,2	80-150	0,4*2	20	3-6	Yes	182
Suspension	1	1,5	80-150	0,4*2	20	3-8	Yes	198
Suspension	2	1,5	80-150	0,4*2	20	3-8	Yes	198
Suspension	2	1,7	80-150	0,4*2	20	3-12	Yes	208
Suspension	3	1,8	80-180	0,4*2	20	3-12	Yes	218
Suspension	3	1,9	80-180	0,4*2	20	3-12	Yes	225
Suspension	5	1,8	80-180	0,75*2	20	3-12	Yes	302
Suspension	5	2,2	80-180	0,75*2	20	3-12	Yes	320
Suspension	10	3,0	80-180	0,8*2	20	3-12	Yes	400
