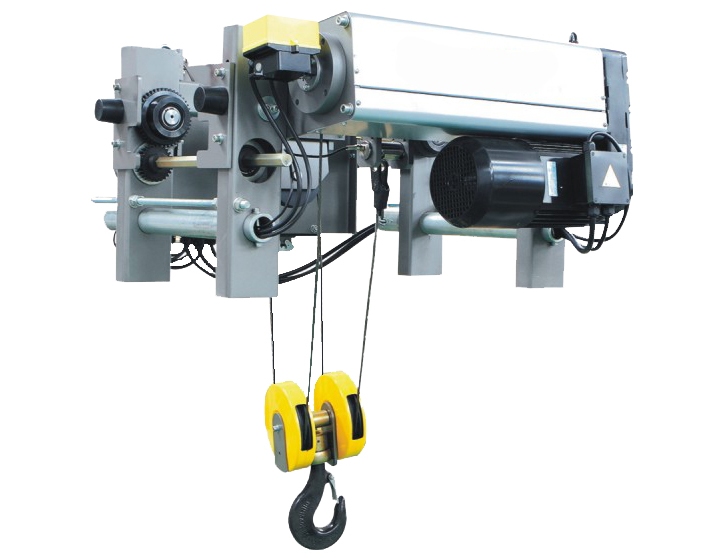

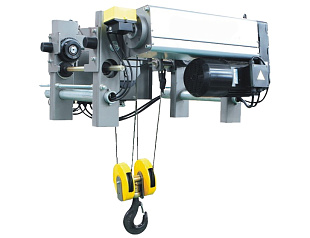

Electric rope-type LHE hoist

Electric rope-type LHE hoist

Electric LHE rope-type hoist is a professional load handling device (telpher). It is equipped with two speeds for cargo lifting which allows to handle cargoes requiring careful treatment, and possesses a reduced construction height due to its special casing design (has no removable trolley). Power supply – 380 V. Advantages: very high manufacture quality, the reduced construction height, availability of 2 speeds for lifting/lowering, components of German manufacture are used (engine inclusive), minimal number of weld joints, high reliability, durability, high performance, operational versatility. The electric rope-type LHE hoist manufactured by TOR Industries complies with quality requirements of Directive 2006/42/EC on Machinery Factsheet for Machinery and has CE certificate.


Characteristics

Model
 Rated load, t
 Lifting height, m Lifting speed, m/s Operating voltage, V Engine power, kw Width I-beam, mm Weight, kg
LHE 2 6 5/0,8 380 3,2/0,45 150-300 341
LHE 2 9 5/0,8 380 3,2/0,45 150-300 360
LHE 2 12 5/0,8 380 3,2/0,45 150-300 380
LHE 2 15 5/0,8 380 3,2/0,45 150-300 401
LHE 2 18 5/0,8 380 3,2/0,45 150-300 425
LHE 3,2 6 5/0,8 380 3,2/0,45 150-300 346
LHE 3,2 9 5/0,8 380 3,2/0,45 150-300 363
LHE 3,2 12 5/0,8 380 3,2/0,45 150-300 385
LHE 3,2 15 5/0,8 380 3,2/0,45 150-300 406
LHE 3,2 18 5/0,8 380 3,2/0,45 150-300 428
LHE 5 6 5/0,8 380 6,1/1 200-350 413
LHE 5 9 5/0,8 380 6,1/1 200-350 435
LHE 5 12 5/0,8 380 6,1/1 200-350 462
LHE 5 15 5/0,8 380 6,1/1 200-350 489
LHE 5 18 5/0,8 380 6,1/1 200-350 516
LHE 10 6 5/0,8 380 9,5/1,5 200-410 814
LHE 10 9 5/0,8 380 9,5/1,5 200-410 846
LHE 10 12 5/0,8 380 9,5/1,5 200-410 890
LHE 10 15 5/0,8 380 9,5/1,5 200-410 934
LHE 10 18 5/0,8 380 9,5/1,5 200-410 978
LHE 20 6 4/0,6 381 16/2,6 300-450 958
LHE 20 9 4/0,6 382 16/2,6 300-450 1042
LHE 20 12 4/0,6 383 16/2,6 300-450 1166
LHE 20 15 4/0,6 384 16/2,6 300-450 1286
LHE 20 18 4/0,6 385 16/2,6 300-450 1406
