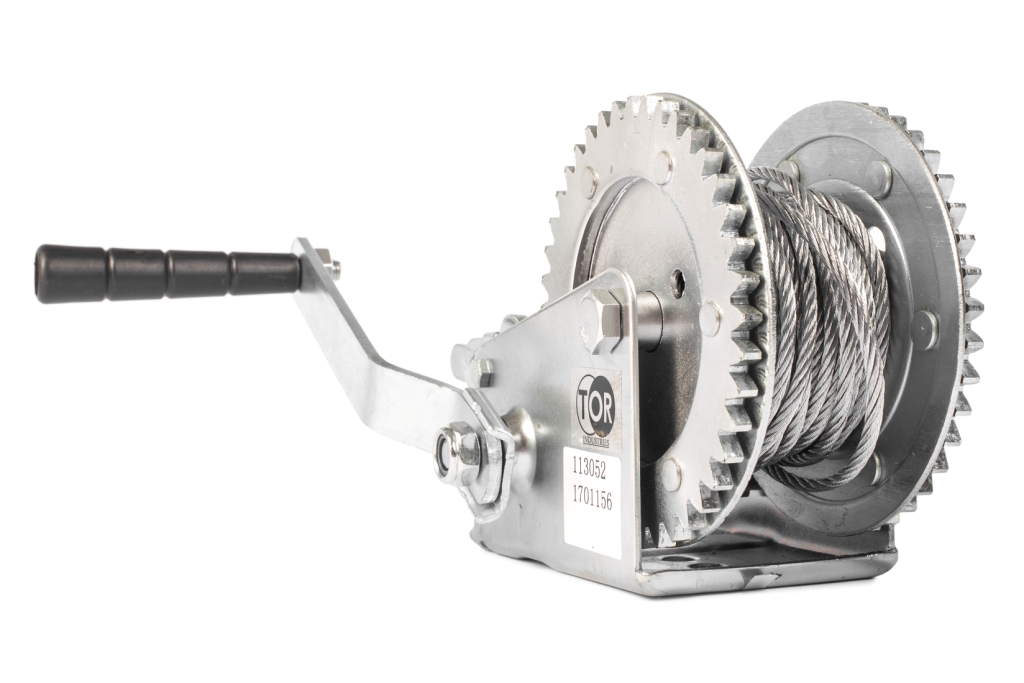

Manual drum-type LHW winch

Manual drum-type LHW winch is a simple, reliable and not very expensive. Equipped with a rope or a hoisting belt. Its design characteristic feature is dual clutch for torque transmission which reduces the load on the gearbox gear and increases the winch service life.Advantages: small dimensions and weight, dual clutch, good workmanship, moderate price, originally equipped with a rope/belt, equipped with ratchet-wheel arresting gear.Recommended for use both in household and industrial facilities with low intensity of operation. Manual drum-type LHW winch manufactured by TOR Industries complies with quality requirements of Directive 2006/42/EC on Machinery Factsheet for Machinery and has CE certificate.


Characteristics

Model
Rated load, t
Rope length, m
Rope diameter, mm
Transmission type
Rope, tape completing
Weight, kg
LHW 0,5 10 4 gear Yes 4,0
LHW 0,5 20 4 gear
Yes
4,6
LHW 1 10 5 gear
Yes
8,5
LHW 1 20 5 gear
Yes
9,5
